Oil Pump Drive Chain (G2299903): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  3. Remove the oil pan.

    Refer to: OIL PAN .

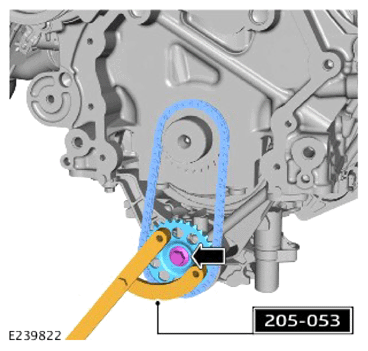

  4. G14429266Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use the special tool to hold the oil pump drive sprocket.

      Special Tool(s): 205-053

    • Remove and discard the bolt.
    • Remove the oil pump drive chain and sprocket.
