Oil Pan (G2297912): Removal

WARNING:

The spilling of hot oil is unavoidable during this procedure, care must be taken to prevent scalding.
Be prepared to collect escaping oil.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
Remove the starter motor.
Refer to: STARTER MOTOR .
Remove the front right halfshaft.
Refer to: FRONT RIGHT HALFSHAFT .
Remove the engine front cover.
Refer to: ENGINE FRONT COVER - VEHICLES WITH: MHEV .

Refer to: ENGINE FRONT COVER - VEHICLES WITH: NON-ELECTRIC VEHICLES .

The following step(s) applies to:

Mild Hybrid Electric Vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

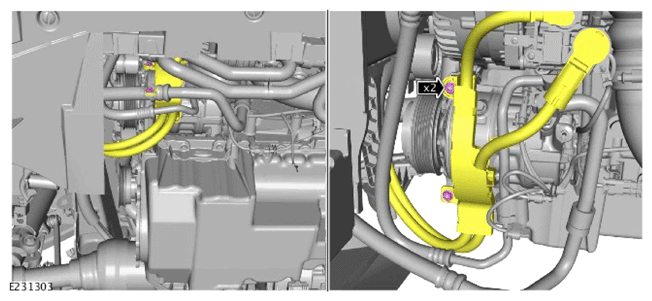

- Remove the 2 nuts.
- Reposition the Belt Integrated Starter Generator (BISG) wiring harness.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the Air Conditioning (A/C) compressor electrical connector.
- Release the clip.
CAUTION: Make sure that there is no tension on the Air Conditioning (A/C) pipes when the A/C compressor bolts are removed. Use suitable equipment to support the A/C compressor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

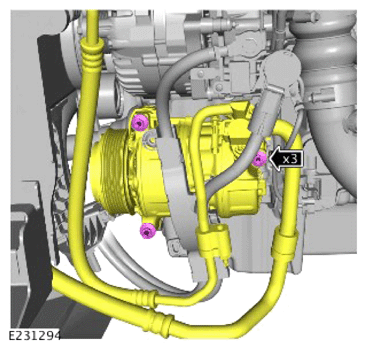

- Remove the 3 bolts.
- Reposition the A/C compressor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

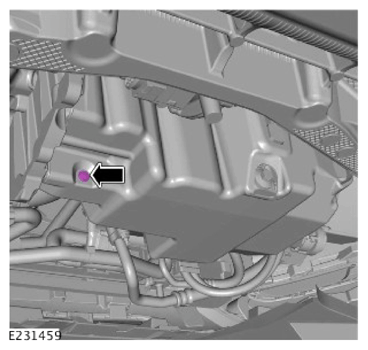

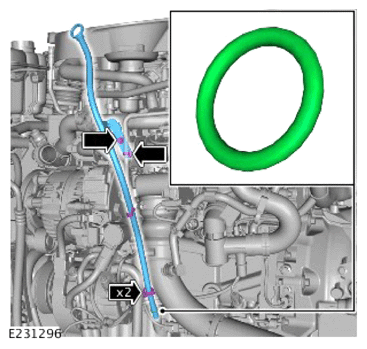

- Remove the bolt.
- Release the 3 clips.
- Remove the oil level gauge pipe.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

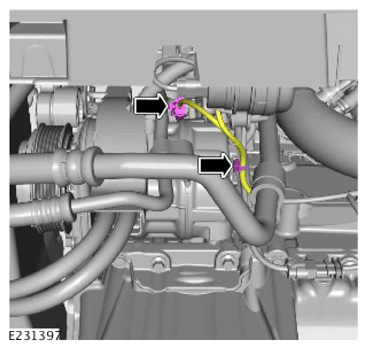

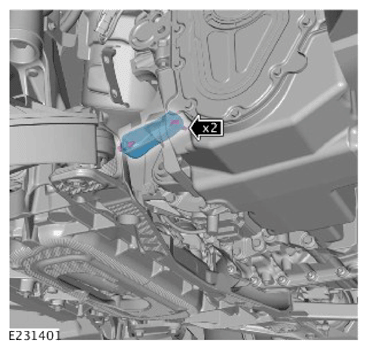

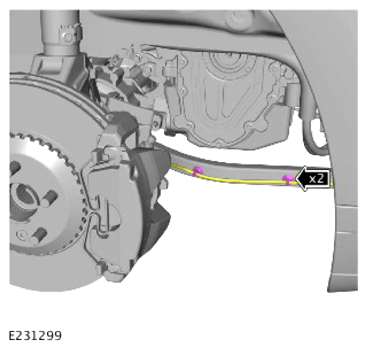

Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

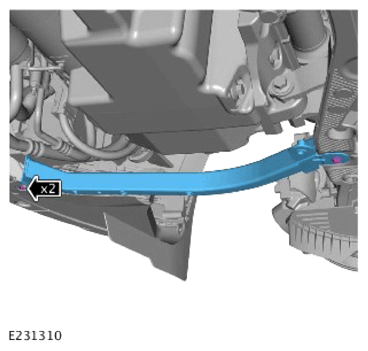

- Remove the 2 bolts.
- Remove the right undershield bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

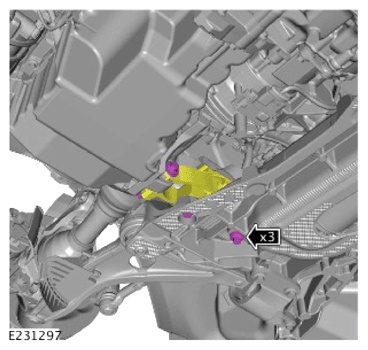

Remove and discard the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use a suitable tool to lever the engine forwards.
- Remove the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

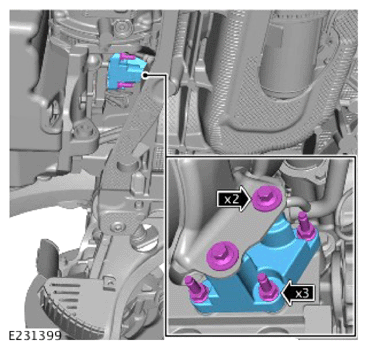

- Remove the 5 bolts.
- Remove the upper exhaust bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

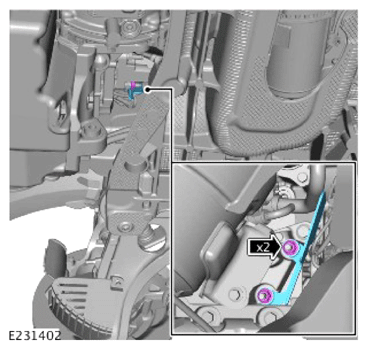

- Remove the 2 bolts.
- Remove the lower exhaust bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

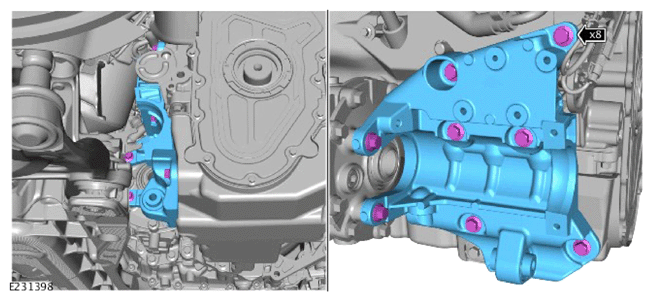

- Remove the 8 bolts.
- Remove the halfshaft support bracket.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

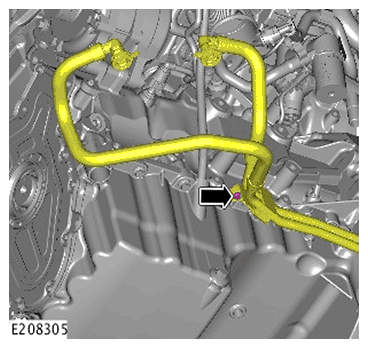

- Remove the nut.
- Release the transmission fluid pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the fastener.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 fasteners.
- Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 5 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 14 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but not fully remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

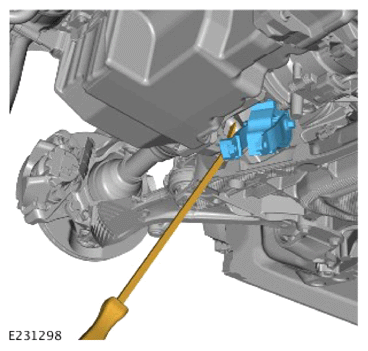

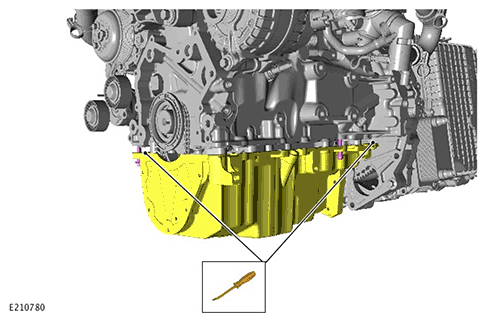

Use a suitable tool to carefully release the oil pan.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

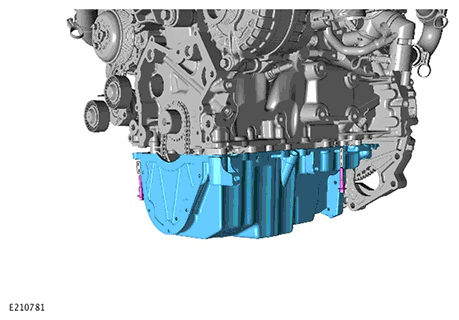

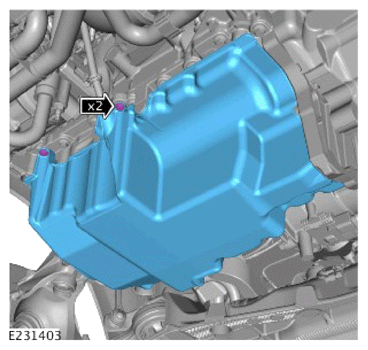

- Remove the 2 bolts.
- Remove the oil pan.
