Oil Cooler (G2297914): Removal

WARNING:

Be prepared to collect escaping oil.
Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
Remove the turbocharger.
Refer to: the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

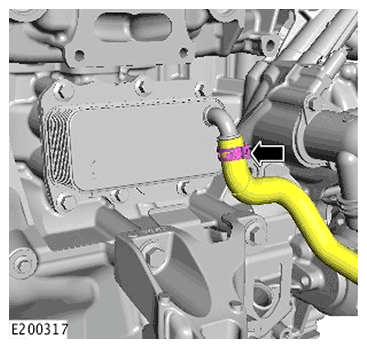

- Release the coolant hose clamp.
- Release the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

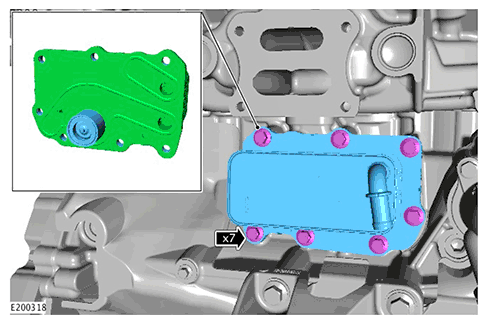

- Remove the 7 bolts.
- Remove the oil cooler.
- Remove and discard the gasket.
