Oil Cooler (G2297914): Installation

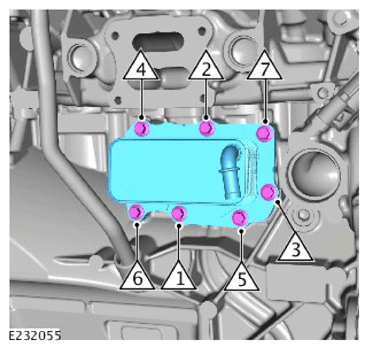

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new gasket.
  Renew Part: Oil cooler gasket Quantity: 1 .
- Install the oil cooler.
- Install and tighten the bolts in the sequence illustrated.
  Torque
  1. Stage 1: 15 Nm
  2. Stage 2: 25 Nm
- Install the coolant hose.
- Install the coolant hose clamp.
Install the turbocharger.
Refer to: the appropriate service information
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
