Lower Timing Cover (G2110221): Removal

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Be prepared to collect escaping oil.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the crankshaft rear seal.
Refer to: CRANKSHAFT REAR SEAL .
Remove the Crankshaft Position Sensor (CKP) sensor.
Refer to: CRANKSHAFT POSITION SENSOR .
CAUTION: Note the position of the bolts prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

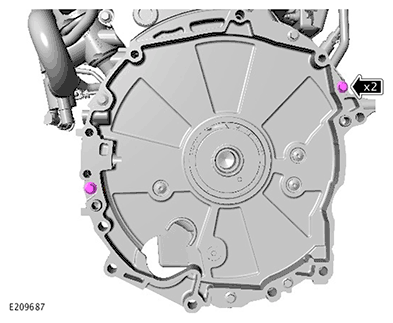

Remove the 2 dowel locating bolts.
CAUTION: Note the position of the bolts prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

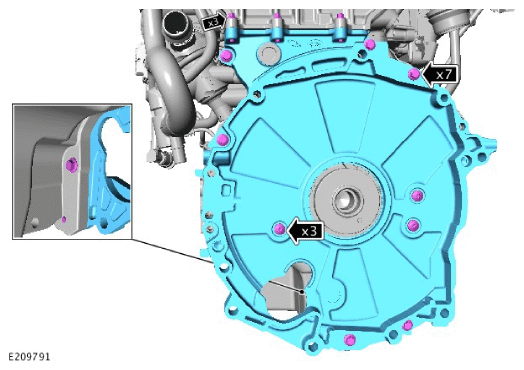

- Remove the 13 remaining bolts.
- Remove the lower timing cover.
CAUTION: Take extra care not to damage the lower timing cover or the dowel pins.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool, reposition the 2 dowels as shown in the illustration.
