Lower Timing Chain (G2309062): Installation

The following step(s) applies to:

All vehicles

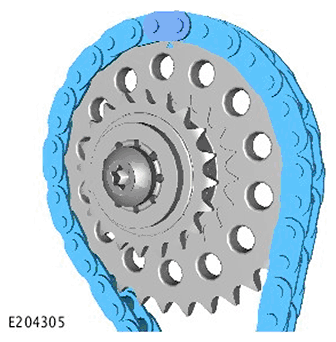

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the timing chain to the idler sprocket.
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.

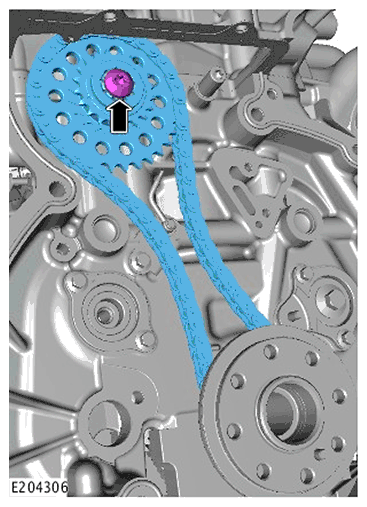

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the idler sprocket and timing chain assembly.
   • Make sure that the timing marks on the timing chain, the idler sprocket and the cylinder block are aligned as illustrated in step 3.
   • Install and tighten the idler sprocket bolt.

     Torque  : 35 Nm

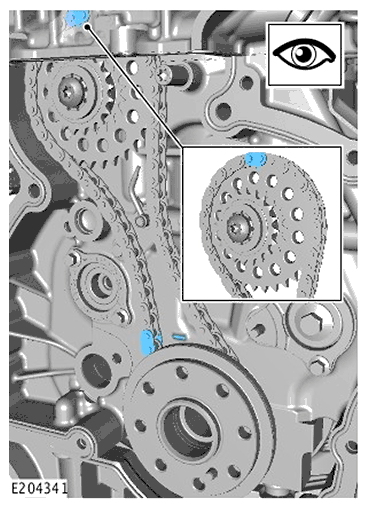

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Check if the highlighted links on the timing chain are aligned with the timing marks on the idler sprocket and the cylinder block.

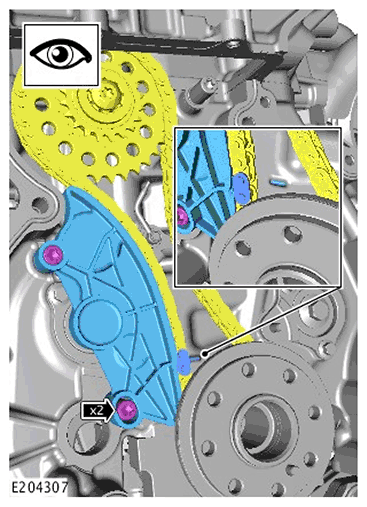

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain guide.

     Renew Part: Lower timing chain guide Quantity: 1 .

   • Check if the highlighted link on the timing chain is aligned with the timing mark on the cylinder block as illustrated.
   • Install and tighten the 2 bolts.

     Torque  : 25 Nm

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain tensioner arm.

     Renew Part: Timing chain tensioner arm Quantity: 1 .

   • Install and tighten the bolt.

     Torque  : 11 Nm

6. CAUTION: Make sure that a new lower timing chain tensioner is installed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain tensioner.

     Renew Part: Timing chain tensioner Quantity: 1 .

   • Install and tighten the 2 bolts.

     Torque  : 11 Nm

7. CAUTION: Make sure that the timing chain tensioner is fully deployed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the lower timing chain tensioner piston.

8. CAUTION:

   • Make sure that the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.
   • Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position as illustrated.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the upper timing chain.
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.
9. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new left upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the bolt.

     Torque  : 25 Nm

10. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the intake camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
    • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
    • Install and tighten a new VCT  unit center bolt.

      Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

      Torque

      1. Stage 1: 10 Nm
      2. Stage 2: Loosen 90°
    • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.
11. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new upper timing chain tensioner arm.

    Renew Part: Timing chain tensioner arm Quantity: 1 .

12. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the exhaust camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
    • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
    • Install and tighten a new VCT  unit center bolt.

      Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

      Torque

      1. Stage 1: 10 Nm
      2. Stage 2: Loosen 90°
    • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.
13. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install a new upper timing chain guide.

      Renew Part: Upper timing chain guide Quantity: 1 .

    • Install and tighten the 2 bolts.

      Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

      Torque  : 11 Nm

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the special tool JLR-303-1636.

      Special Tool(s): JLR-303-1636

    • Install and tighten the 2 special tool bolts.

      Torque  : 13 Nm

15. CAUTION: Make sure that a new upper timing chain tensioner is installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the new timing chain tensioner.

    Renew Part: Timing chain tensioner Quantity: 1 .

    Torque  : 55 Nm

16. CAUTION:

    • Make sure that the timing chain tensioner piston is fully deployed.
    • Do not manually adjust the timing chain tensioner.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To properly install the new timing chain tensioner, push the timing chain guide against the tensioner as illustrated. This allows the tensioner to reach its final tension position.

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 2 VCT  center bolts.

    Torque

    1. Stage 1: 25 Nm
    2. Stage 2: 60°

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1636.

      Special Tool(s): JLR-303-1636

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1635.

      Special Tool(s): JLR-303-1635

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool JLR-303-1630.

    Special Tool(s): JLR-303-1630

    The following step(s) applies to:

    Mild Hybrid Electric Vehicles

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools JLR-303-1630 and JLR-303-1686.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

22. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disassemble the special tool assembly JLR-303-1630 and JLR-303-1686.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

    The following step(s) applies to:

    All vehicles

23. NOTE: This step is to make sure that the timing components are properly installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool JLR-303-1656 to rotate the crankshaft 2 times clockwise.

    Special Tool(s): JLR-303-1656

24. Install the lower timing cover.

    Refer to: LOWER TIMING COVER .

25. Install the upper timing cover.

    Refer to: UPPER TIMING COVER .

26. Install the front right wheel arch liner.

    Refer to: FRONT WHEEL ARCH LINER .

27. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .
