Left Powertrain Mount Bracket (G2318451): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the startup battery tray.
Refer to: STARTUP BATTERY TRAY .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .

The following step(s) applies to:

Mild Hybrid Electric Vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the MHEV battery cable clip.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the startup battery tray bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the transmission breather pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable trolley jack and wooden block to support the transmission.

General Equipment: Trolley jack

General Equipment: Wooden Block
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 3 left powertrain mount upper bolts.
Lower the powertrain assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

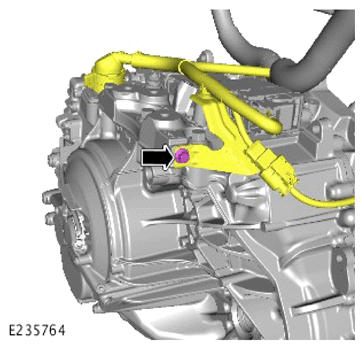

Remove the bolt and position the transmission wiring harness away from the left powertrain mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

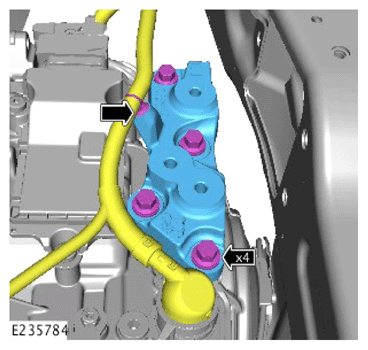

- Release the transmission wiring harness clip.
- Remove and discard the 4 bolts.
- Remove the left powertrain mount bracket.
