Left Powertrain Mount (G2318450): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to:
All vehicles
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the startup battery tray.
Refer to: STARTUP BATTERY TRAY .
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
- Remove the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
The following step(s) applies to:
Mild Hybrid Electric Vehicles
Release the Mild Hybrid Electric Vehicle (MHEV) battery cable clip.
The following step(s) applies to:
All vehicles
- Remove the 2 bolts.
- Remove the startup battery tray bracket.
Release the transmission breather pipe clip.
Use a suitable trolley jack and wooden block to support the transmission.
General Equipment: Trolley jack
General Equipment: Wooden Block

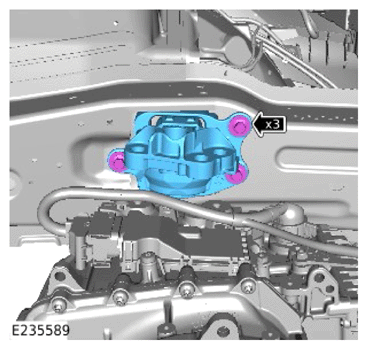

Remove and discard the 3 left powertrain mount upper bolts.
- Lower the powertrain assembly.
Remove the bolt and reposition the transmission wiring harness away from the left powertrain mounting bracket.
- Release the transmission wiring harness clip.
- Remove and discard the 4 bolts.
- Remove the left powertrain mount bracket.
- Remove the 2 left powertrain mount outer bolts.
- Remove the left powertrain mount damper.
- Remove the 3 left powertrain mount inner bolts.
- Remove the left powertrain mount.
