Engine Front Cover - Vehicles With: MHEV (G2308405): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .

  3. Disconnect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT .

  4. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: MHEV .

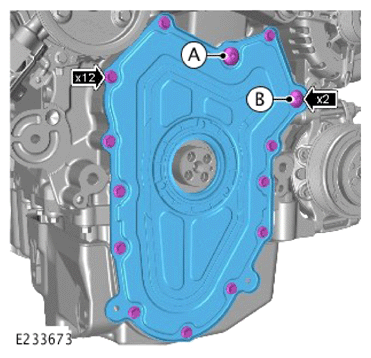

  5. G14429105Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 14 bolts.
    • Remove the engine front cover.
