Engine Front Cover - Vehicles With: MHEV (G2308405): Installation

  1. CAUTION:
    • Inspect the front cover and replace if necessary.
    • Make sure that the surface of the front cover and the engine is clean and free of foreign material.
    • Steps 1-4 must be completed within 7 minutes of starting to apply the RTV.

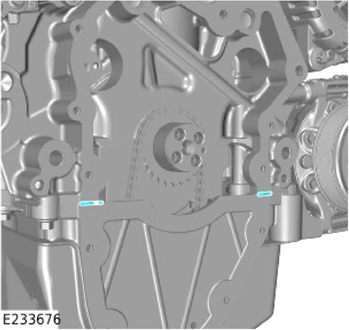

    G14054862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply RTV sealant in the position shown.

    Refer to: SPECIFICATIONS .

  2. G14054863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine front cover.
    • Use the front cover alignment tool to align the front cover.

      Special Tool(s): JLR-303-1672

  3. CAUTION: Do not fully tighten the bolts at this stage.
    G14054864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and finger tighten the 4 bolts.

  4. CAUTION: Continuous forward pressure must be applied on the tool.
    Fig 1: Engine Front Cover Tightening Sequence
    G14054865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 4 bolts in the sequence illustrated.

    Torque  : 12 Nm

  5. CAUTION: This step must be completed within 40 minutes of starting to apply the RTV.
    G14054866Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 8 bolts.

    Torque  : 12 Nm

  6. G14054867Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front cover alignment tool.

    Special Tool(s): JLR-303-1672

  7. CAUTION: This step is only required if the front cover is re-used.
    G14054868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Rotate the special tool and the crankshaft front seal 35° in a counter clockwise direction.
    • Remove the special tool and the crankshaft front seal.
    • Remove and discard the crankshaft front seal.
  8. CAUTION: This step is only required if the front cover is re-used.
    G14054869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new crankshaft front seal to the special tool.

      Special Tool(s): JLR-303-1628

      Renew Part: Crankshaft front oil seal Quantity: 1 .

    • Install the special tool and the crankshaft front seal.
    • Rotate the crankshaft front seal and special tool 35° in a clockwise direction.
    • Remove the special tool.
  9. G14280536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 bolts.

    Torque  : 25 Nm

  10. Install the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: MHEV .

  11. Connect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT .

  12. Fill the engine with oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
