Drive Plate (G2312437): Removal

CAUTION: Do not install the drive plate bolts into the crankshaft with the drive plate removed. Failure to follow this instruction will result in damage to the engine.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  3. Remove the transmission.

    Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL .

  4. CAUTION: Only rotate the crankshaft clockwise.

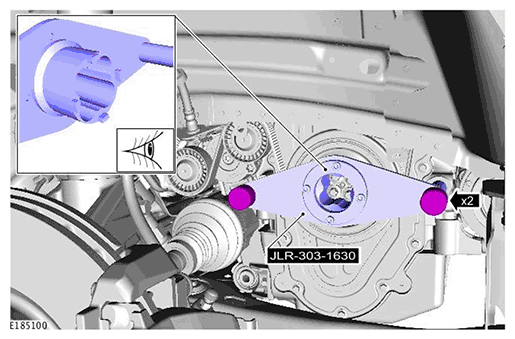

    G11717141Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-303-1630

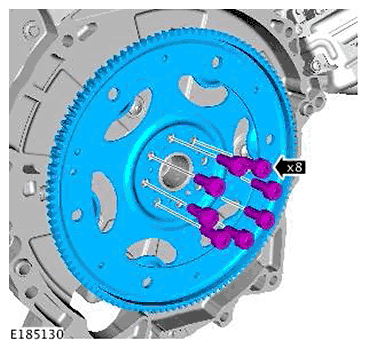

  5. G11717142Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 8 bolts.
    • Remove the drive plate.
