Drive Plate (G2312437): Installation

NOTE: Do not insert the bottoming tap more than the depth of the threaded holes (16 mm). Apply tape to the bottoming tap 16 mm from the end as a visual guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use a suitable bottoming tap to clean out the threads.
- Use a suitable cleaning solution to remove any foreign material from the threads.

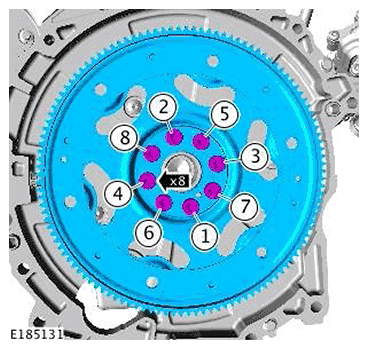

Fig 1: Drive Plate Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the drive plate.
- Install, but do not fully tighten the 8 new drive plate bolts.
  Renew Part: Drive plate bolts Quantity: 8 .
- Tighten the 8 bolts.
  Torque
  1. Stage 1: 30 Nm
  2. Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

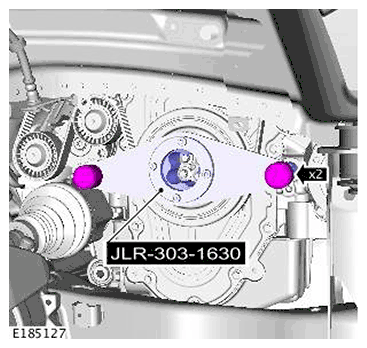

Remove the special tool.

Special Tool(s): JLR-303-1630
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL .
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
