Cylinder Head (G2110225): Installation

  1. Check cylinder head face for distortion, across the center and from corner to corner.

    Refer to: CYLINDER HEAD DISTORTION .

  2. CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

    Install the 2 dowels.

  3. NOTE: The cylinder head gasket must be installed over the cylinder head to cylinder block dowels.

    Install a new cylinder head gasket.

    Renew Part: Cylinder head gasket Quantity: 1 .

  4. CAUTION: Make sure that the component is correctly located on the locating dowels.

    With the aid of another technician, install the cylinder head.

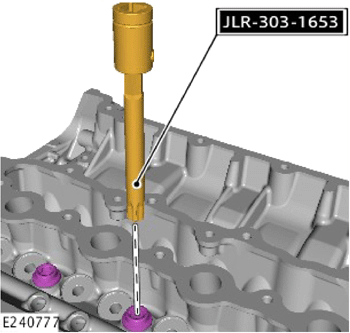

  5. G14055045Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install the cylinder head bolts.

    Install the Special Tool(s): JLR-303-1653

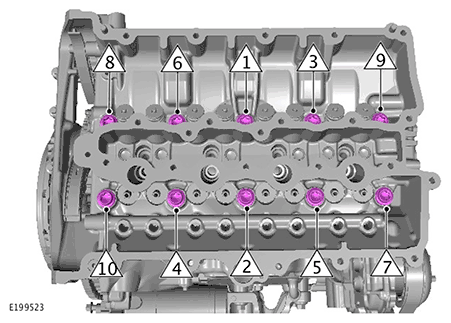

  6. Fig 1: Cylinder Head Retaining Bolts Tightening Sequence
    G11717712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten 10 new cylinder head bolts in the indicated sequence.

      Renew Part: Cylinder head bolts Quantity: 10 .

      Torque

      1. Stage 1: 30 Nm
      2. Stage 2: 62 Nm
  7. G11717712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen then tighten each bolt in the illustrated sequence.

      Torque

      1. Loosen: 180°
      2. Tighten: 62 Nm
  8. G11717712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Tighten the 10 bolts in the indicated sequence.

      Torque  : 125°

    • Remove the special tool.

      Remove the Special Tool(s): JLR-303-1653

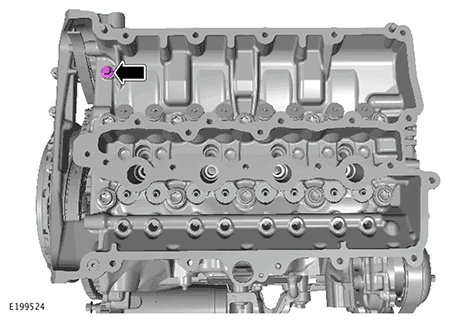

  9. G11717715Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten the bolt.

      Torque  : 26 Nm

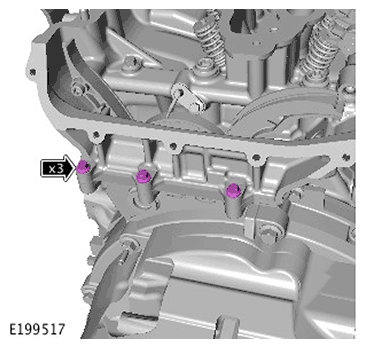

  10. G11717705Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 3 bolts to the rear of the cylinder head.

      Torque  : 12 Nm

  11. Final torque range for M13 cylinder head bolts is 70-110 Nm.
  12. CAUTION:
    • Make sure that the components are clean, dry and free from corrosion and foreign material.
    • Check all timing components for wear and install new components if required.
    NOTE: Note the orientation of the alignment marks.

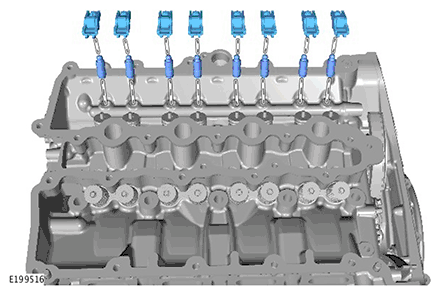

    G11717704Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 8 hydraulic lash adjusters.
    • Install the 8 camshaft roller finger followers.

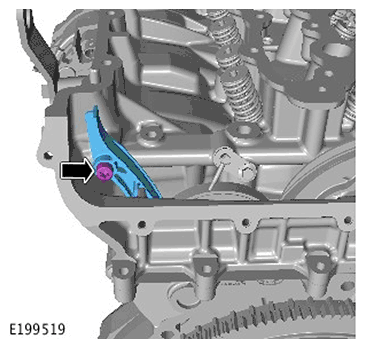

  13. G11717707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the timing chain guide.
    • Install and tighten the bolt.

      Torque  : 25 Nm

  14. G11717703Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the NVH  material.

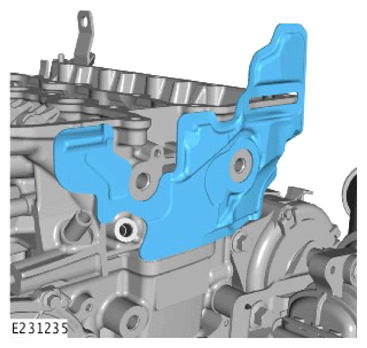

  15. G14430812Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the NVH  material.

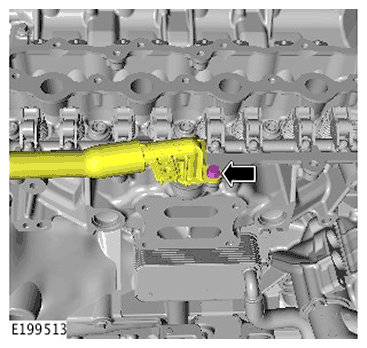

  16. G11717701Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the coolant pipe.
    • Install and tighten the bolt.

      Torque  : 12 Nm

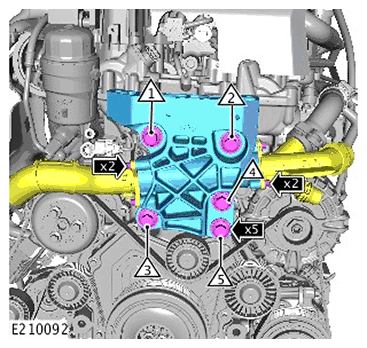

  17. G11717700Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right powertrain mount bracket.
    • Install and tighten the 5 bolts in the indicated sequence.

      Torque

      1. Stage 1: 50 Nm
      2. Stage 2: 125°
    • Connect the coolant pipe.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

    • Connect the coolant pipe.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

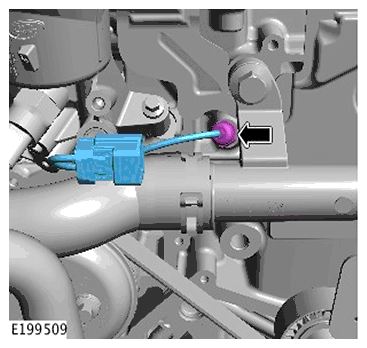

  18. G11717699Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten a new cylinder head temperature sensor.

      Torque  : 10.5 Nm

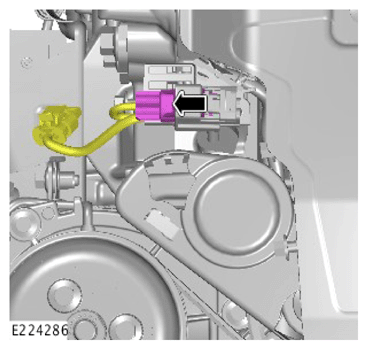

  19. G14430808Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the electrical connector.
  20. Install the oil filter housing.

    Refer to: OIL FILTER HOUSING .

  21. Install the right powertrain mount.

    Refer to: RIGHT POWERTRAIN MOUNT .

  22. Install the camshaft carrier.

    Refer to: CAMSHAFT CARRIER .

  23. Install the turbocharger.

    Refer to: the appropriate service information

  24. Install the intake manifold.

    Refer to: INTAKE MANIFOLD .

  25. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .
