Crankshaft Front Seal - Vehicles With: Non-Electric Vehicles (G2110218): Removal

CAUTION:
  • Do not use excessive force to remove or install the component.
  • Make sure that the area around the component is clean and free of foreign material.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  3. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: NON-ELECTRIC VEHICLES .

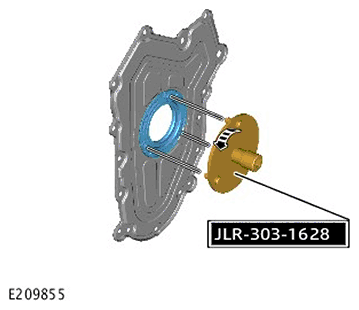

  4. G11717674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Rotate the special tool 35 degrees in a counter clockwise direction.
    • Use the special tool to remove the crankshaft front seal.
    • Discard the crankshaft front seal.
