Crankshaft Front Seal - Vehicles With: Non-Electric Vehicles (G2110218): Installation

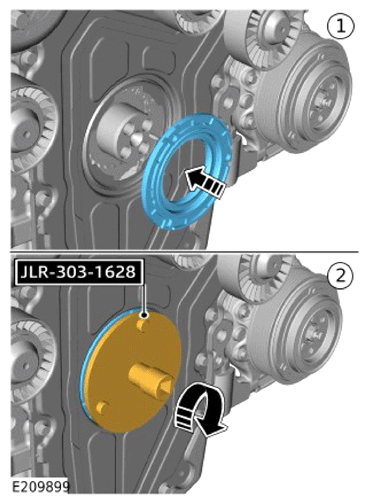

  1. G14428987Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new crankshaft front seal to the special tool.

      Special Tool(s): JLR-303-1628

    • Install the special tool and the crankshaft front seal.
    • Use the special tool to tighten the crankshaft front seal.

      Torque  : 26 Nm

    • Remove the special tool.
  2. Install the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: NON-ELECTRIC VEHICLES .

  3. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .
