Continuous Variable Valve Lift Oil Temperature Sensor (G2163695): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Release the breather pipe from the vent oil separator.
- Remove the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

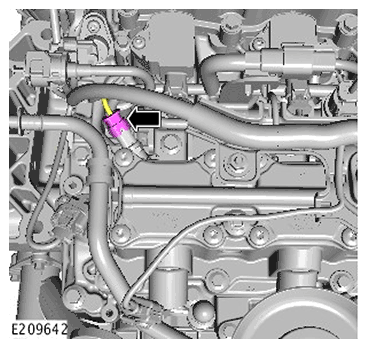

- Disconnect the electrical connector.
- Reposition the wiring harness away from the sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

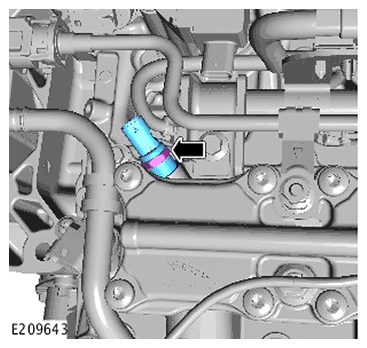

Remove the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
