Continuous Variable Valve Lift Oil Temperature Sensor (G2163695): Installation
-
CAUTION:
- Do not touch the tip of the sensor.
- Lubricate the threaded section of the sensor with a small amount of clean engine oil.
Install and tighten the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
Torque : 18 Nm
- Connect the electrical connector.

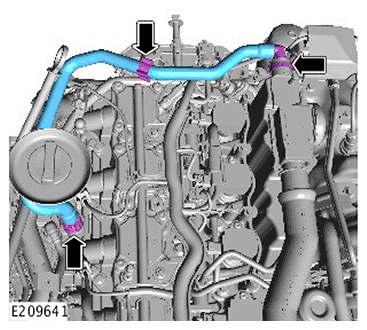

- Install the breather pipe.
- Install the breather pipe into the clip.
- Connect the breather pipe to the vent oil separator.
- Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
