Balance Shaft Assembly (G3187563): Installation

The following step(s) applies to:

All vehicles

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Lubricate the new balance shaft with clean engine oil.

   Refer to: SPECIFICATIONS .

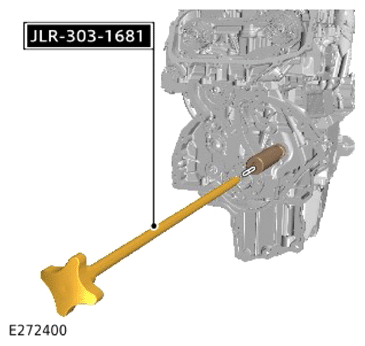

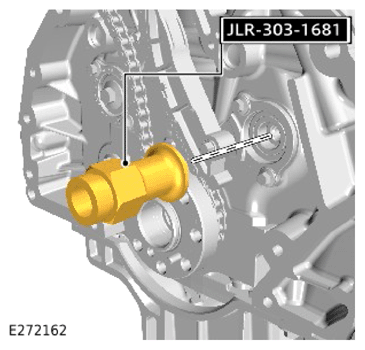

2. CAUTION: Make sure the balance shaft is supported at all times.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

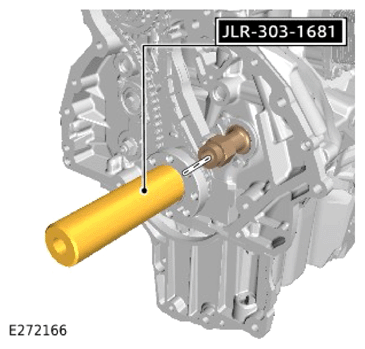

   Carefully install the new balance shaft onto the guide.

   Special Tool(s): JLR-303-1681

3. CAUTION: Care must be taken to avoid damage to the balance shaft roller bearings in the positions illustrated during the installation process.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Supporting the guide and the balance shaft, carefully install the balance shaft assembly.

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the balance shaft alignment tool through the support plate.
   • Make sure the tool is installed correctly into the balance shaft hole 1  .

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install the bolt finger tight.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the guide from the balance shaft.

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the balance shaft retaining tool extension.

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the balance shaft gear retaining tool.

9. CAUTION: Make sure the bolt is clean and free from engine oil before installing. Failure to clean the bolt could cause damage to the balance shaft.

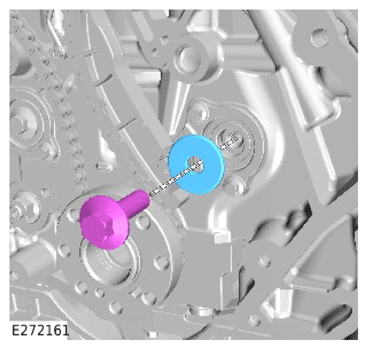

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install and tighten the balance shaft bolt and washer.

   Torque  : 55 Nm

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the bolt.
    • Remove the balance shaft alignment tool.
11. Repeat steps  59 -  69 of the removal procedure for the right side balance shaft.
12. Repeat steps  1 -  10 of the install procedure for the right side balance shaft.

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

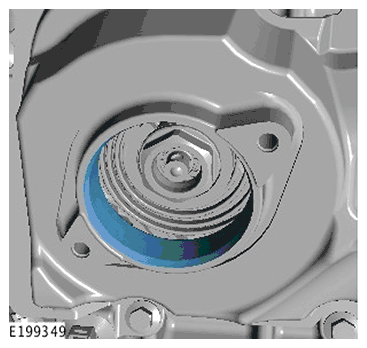

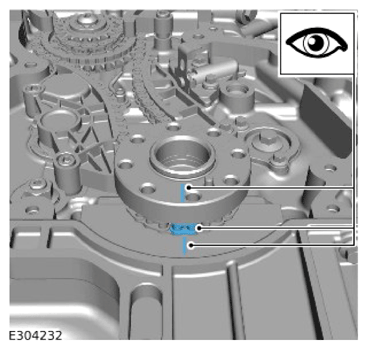

    Visually inspect the balance shaft positions.

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts.

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 bolts.
    • Remove the end plate.

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

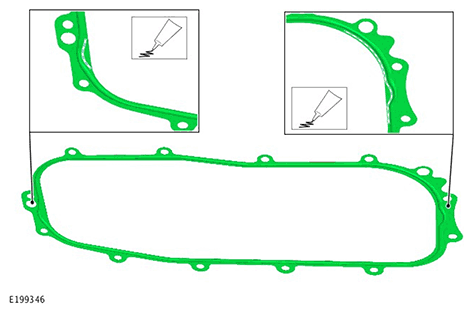

    Apply sealant to the positions illustrated.

    Refer to: SPECIFICATIONS .

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install the new crankshaft front seal to the engine front cover.

    Special Tool(s): JLR-303-1628

    Renew Part: Crankshaft front oil seal Quantity: 1 .

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the engine front cover.
    • Install the 12 bolts finger tight at this stage.

    The following step(s) applies to:

    Mild Hybrid Electric Vehicles

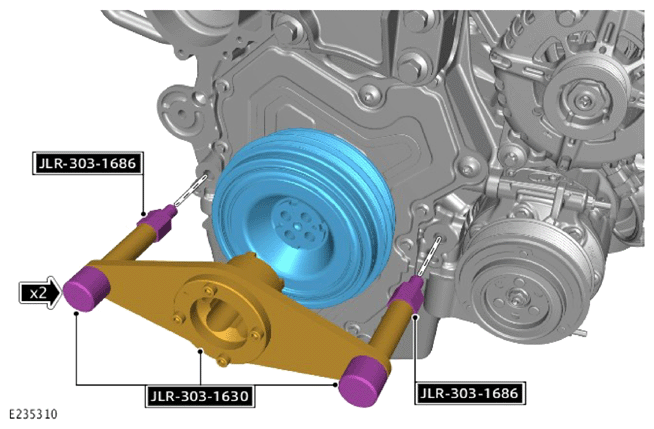

19. CAUTION:

    • Make sure all the mating faces are clean and free from foreign material.
    • The crankshaft will require rotating to align the special tool. Make sure the crankshaft is returned to the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the crankshaft damper pulley.
    • Install the special tool.

      Special Tool(s): JLR-303-1686  , JLR-303-1630

    The following step(s) applies to:

    Non-Mild Hybrid Electric Vehicles

20. CAUTION:

    • Make sure all the mating faces are clean and free from foreign material.
    • The crankshaft will require rotating to align the special tool. Make sure the crankshaft is returned to the correct position.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the crankshaft damper pulley.
    • Install the special tool.

      Special Tool(s): JLR-303-1630

    The following step(s) applies to:

    All vehicles

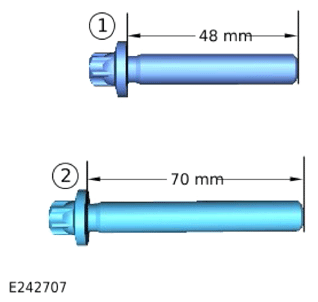

21. CAUTION: Make sure the correct length bolts are installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    1. Bolts to be used for Non Mild Hybrid Electric Vehicles only.
    2. Bolts to be used for Mild Hybrid Electric Vehicles only.

       Renew Part: Crankshaft pulley bolts Quantity: 4 .

22. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 4 crankshaft damper pulley bolts.

    Renew Part: Crankshaft mass damper bolt(s) Quantity: 4 .

    Torque

    1. Stage 1: 37 Nm
    2. Stage 2: 90°

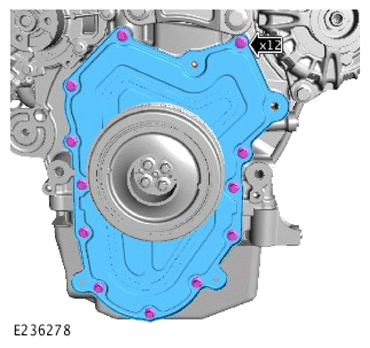

23. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 12 engine front cover bolts.

    Torque  : 12 Nm

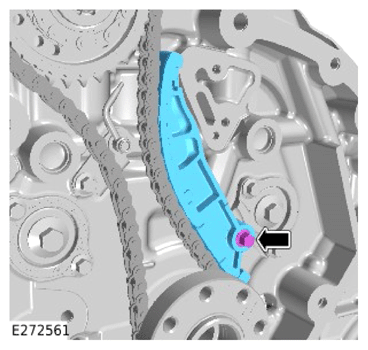

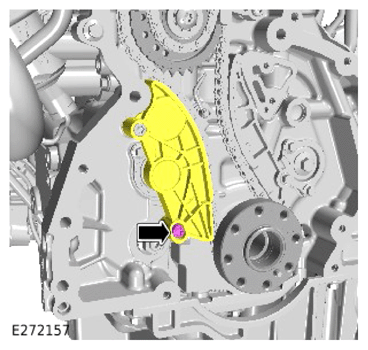

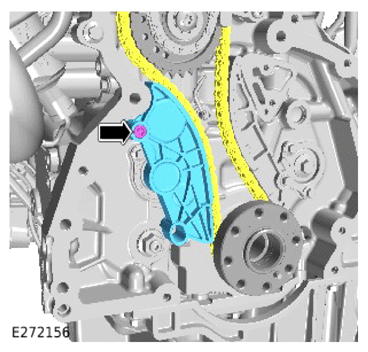

24. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the left lower timing chain guide.
    • Install and tighten the bolt.

      Torque  : 25 Nm

25. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the bolt.

    Torque  : 25 Nm

26. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the right lower timing chain tensioner guide.
    • Install and tighten the bolt.

      Torque  : 11.5 Nm

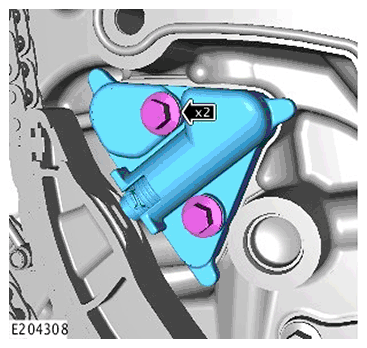

27. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install a new lower timing chain tensioner.

      Renew Part: Lower timing chain tensioner Quantity: 1 .

    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

28. CAUTION: Failure to follow this instruction may cause damage to the component.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the paint markings are correctly aligned.

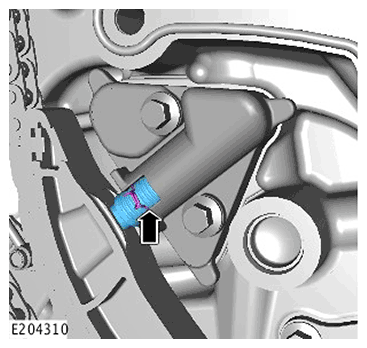

29. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the retaining pin and release the lower timing chain tensioner.

30. CAUTION: Make sure all the mating faces are clean and free from foreign material.

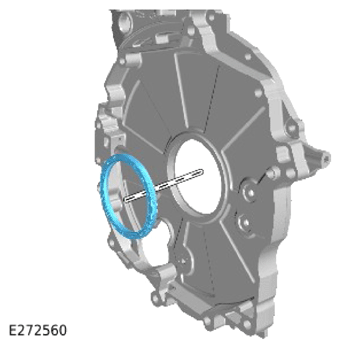

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the crankshaft rear oil seal.

31. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Position the 2 dowels as illustrated.

32. CAUTION: Make sure all the mating faces are clean and free from foreign material.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply a continuous 3 mm diameter bead of sealant to the area illustrated.

    Refer to: SPECIFICATIONS .

33. CAUTION: Take care not to damage the cylinder head gasket when installing the lower timing cover.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the lower timing cover.
    • Install and tighten the 2 bolts.

      Torque  : 5 Nm

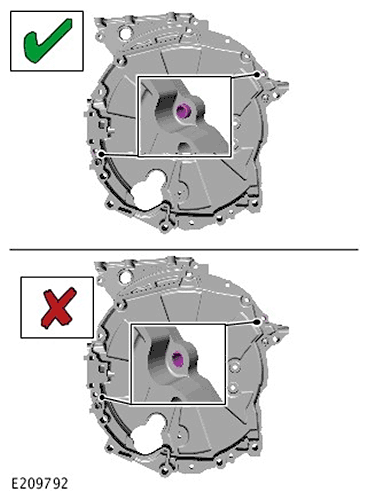

34. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the 2 additional bolts as illustrated.
    • Tighten the 4 bolts.

      Torque  : 25 Nm

35. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 11 bolts.

    Torque

    M8x35 Hex Bolts: 25 Nm

    M8x30 Torx® Bolts: 25 Nm

    M6x30 Hex Bolts: 12 Nm

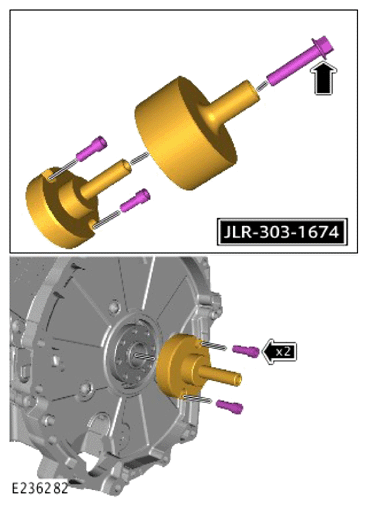

36. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the crankshaft rear oil seal alignment tool as illustrated.

      Special Tool(s): JLR-303-1674A

    • Install and tighten the 2 M8 bolts.

      Torque  : 10 Nm

37. CAUTION: Make sure that the mating face is clean and free of foreign material.
    NOTE: The component labelled 2  in the illustration is an alignment spacer provided with the new seal.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Position the new crankshaft rear oil seal 1  and spacer 2  as illustrated.

      Renew Part: Crankshaft rear seal Quantity: 1 .

    • Carefully install the crankshaft rear oil seal 1  over the end of the crankshaft and discard the spacer.

38. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

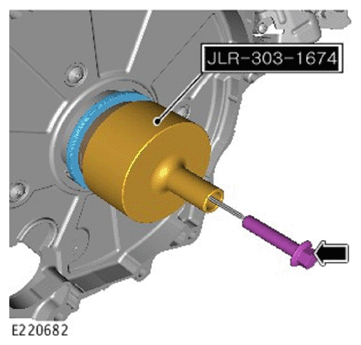

    • Install the special tool as illustrated.
    • Tighten the bolt until the crankshaft rear oil seal is fully installed.

39. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): JLR-303-1674A

40. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Use an M10 x 1.0 mm bottoming tap to clean the threads in the end of the crankshaft.

      General Equipment: M10 tap

    • Use a suitable cleaning solution to remove any foreign material from the threads.

    The following step(s) applies to:

    Vehicles with manual transmission

41. Fig 1: Flywheel Bolts Tightening Sequence

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    CAUTION:

    • This step requires the aid of another technician.
    • Make sure that the mating face is clean and free of foreign material.

    With the aid of another technician, install the flywheel.

42. Install and tighten the 8 bolts in the sequence illustrated.

    Renew Part: Dual mass flywheel bolts Quantity: 8 .

    Torque

    1. Stage 1: 30 Nm
    2. Stage 2: 120°

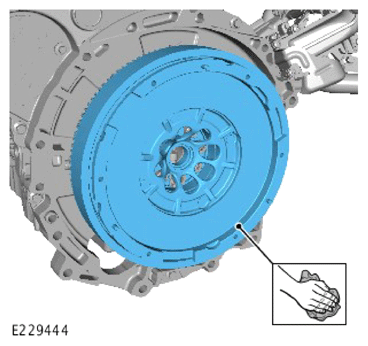

43. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable cleaning solution to clean the flywheel surface.

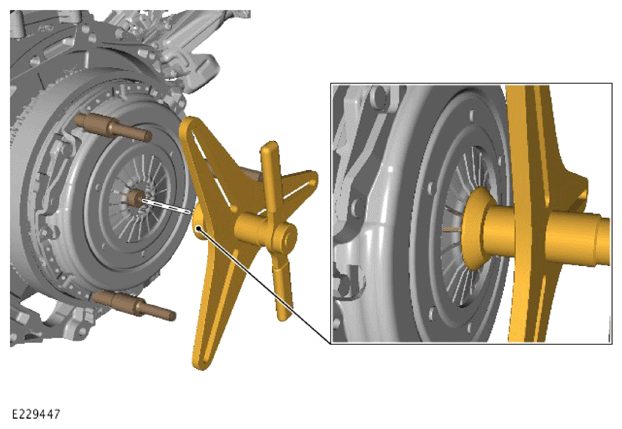

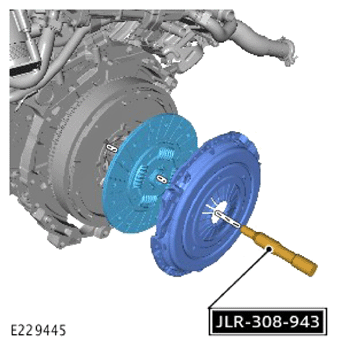

44. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install the clutch assembly.

    General Equipment: Clutch alignment kit JLR-308-943

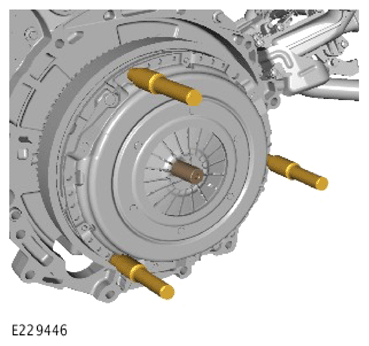

45. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 3 locating studs hand tight.

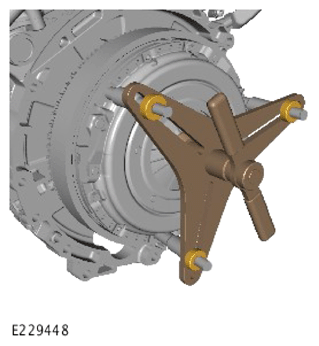

46. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool over the 3 locating studs as illustrated.

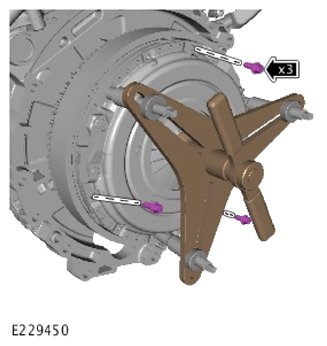

47. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 3 locking nuts hand tight.

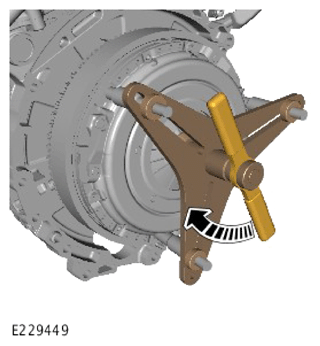

48. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Turn the handle clockwise as illustrated until the clutch assembly is flush with the drive plate mating face.

49. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

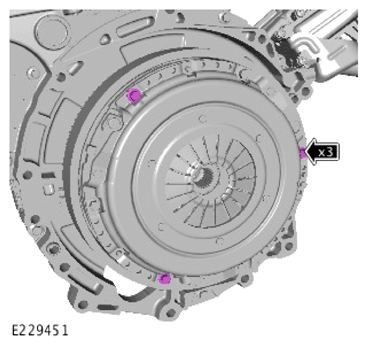

    Install and tighten the 3 bolts.

    Renew Part: Clutch cover assembly bolt(s) Quantity: 6 .

    Torque  : 29 Nm

50. Remove the special tools.

    General Equipment: Clutch alignment kit JLR-308-943

51. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 3 bolts.

    Torque  : 29 Nm

    The following step(s) applies to:

    Vehicles with automatic transmission

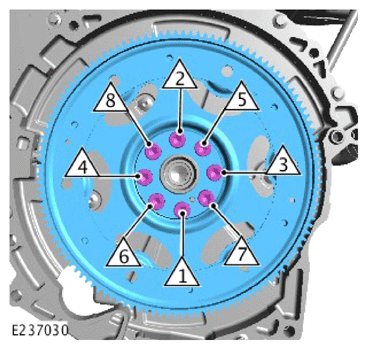

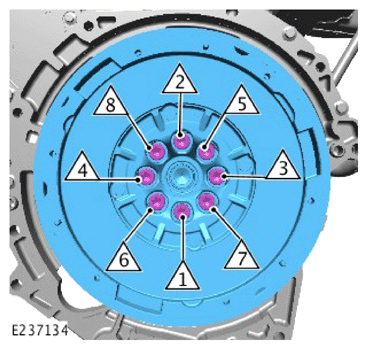

52. Fig 2: Drive Plate Bolts Tightening Sequence

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    CAUTION: Make sure all the mating faces are clean and free from foreign material.

    With the aid of another technician, install the drive plate.

53. Install and tighten the 8 bolts in the sequence illustrated.

    Renew Part: Drive plate bolts Quantity: 8 .

    Torque

    1. Stage 1: 30 Nm
    2. Stage 2: 120°

    The following step(s) applies to:

    All vehicles

54. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

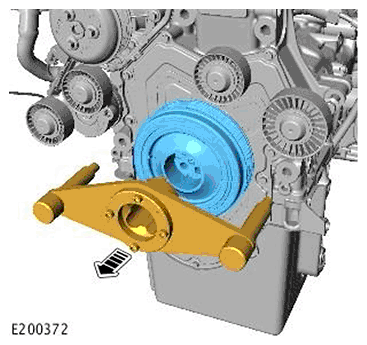

55. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the crankshaft damper pulley holding tool.

    Special Tool(s): JLR-303-1630

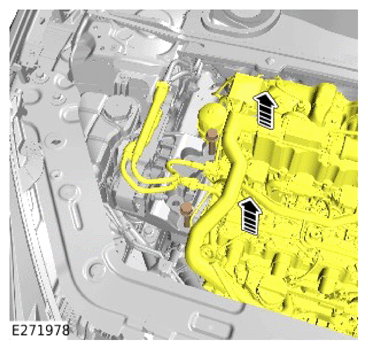

56. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Raise the powertrain into the correct position.

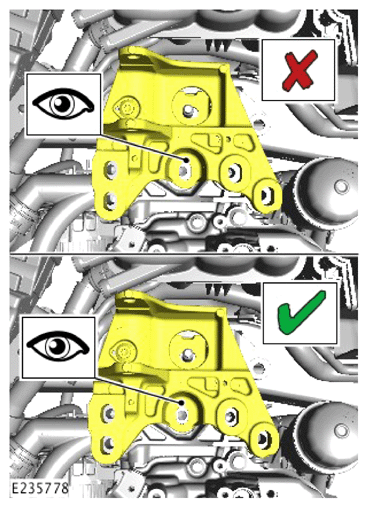

57. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the powertrain upper support insulator is correctly aligned.

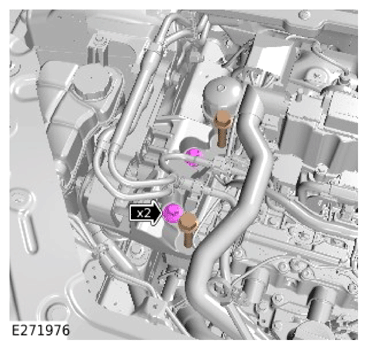

58. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 new bolts.

    Renew Part: Powertrain upper support insulator to engine bolt(s) Quantity: 2 .

    Torque

    1. Stage 1: 48 Nm
    2. Stage 2: 60°

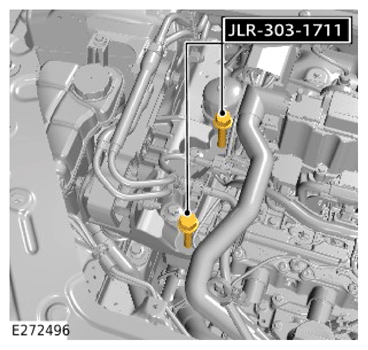

59. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 special tool bolts.

    Special Tool(s): JLR-303-1711

60. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 new bolts.

    Renew Part: Powertrain upper support insulator to engine bolt(s) Quantity: 2 .

    Torque

    1. Stage 1: 48 Nm
    2. Stage 2: 60°

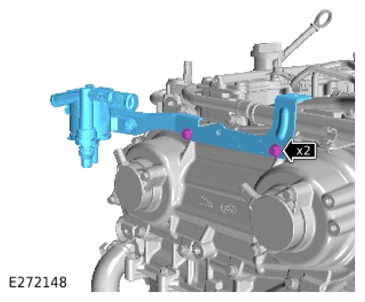

61. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 bolts.
    • Remove the special tool.

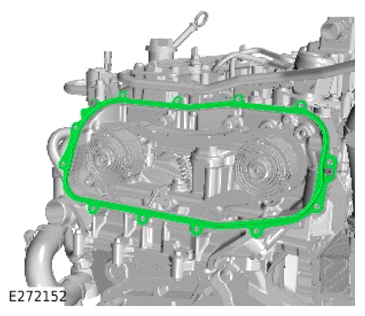

62. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Apply a continuous 3 mm diameter bead of sealant to the cylinder head in the areas illustrated.

      Refer to: SPECIFICATIONS .

63. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new gasket.

    Renew Part: Upper timing chain cover gasket Quantity: 1 .

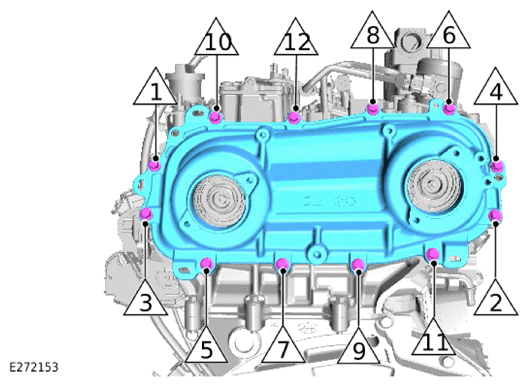

64. Fig 3: Upper Timing Cover Bolts Tightening Sequence

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the upper timing cover.
    • Install and tighten the 12 bolts in the illustrated sequence.

      Torque

      1. Stage 1: 5 Nm
      2. Stage 2: 13 Nm
      3. Stage 3: Loosen 180°
      4. Stage 4: 13 Nm

65. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lubricate the VCT  solenoid bores with new engine oil.

    Refer to: SPECIFICATIONS .

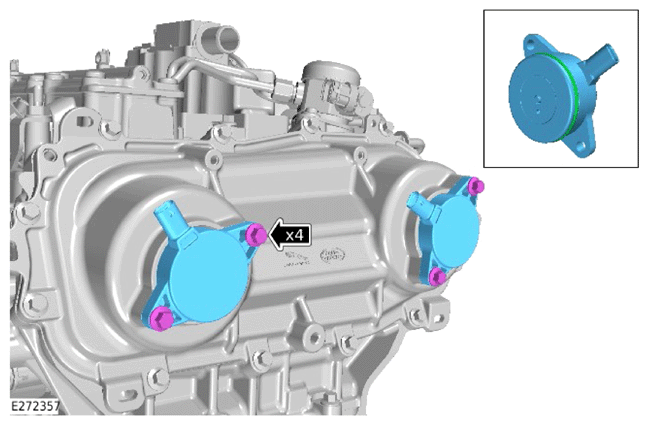

66. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install 2 new O-ring seals.

      Renew Part: Variable Camshaft Timing (VCT) solenoid O-ring seals Quantity: 2 .

    • Install the 2 VCT  solenoids.
    • Install and tighten the 4 bolts.

      Torque  : 9 Nm

67. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

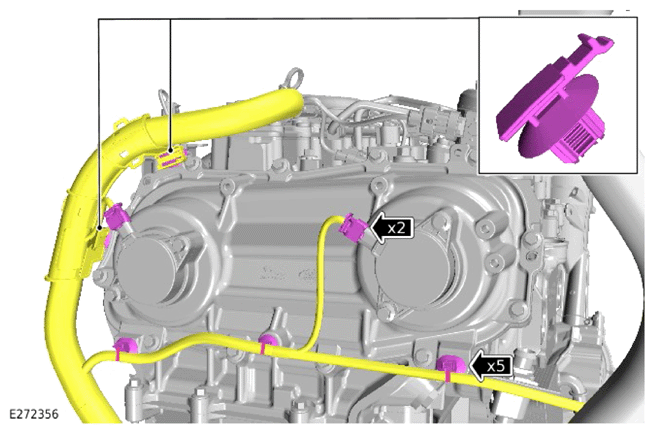

    • Connect the 2 electrical connectors.
    • Install the 4 wiring harness clips.

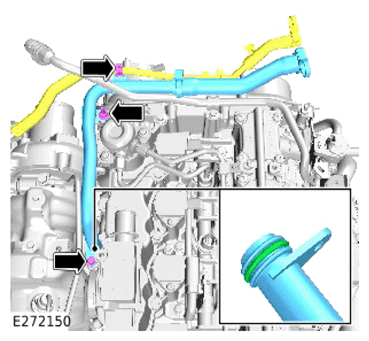

68. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install a new O-ring seal.

      Renew Part: Engine coolant outlet upper O-ring seal Quantity: 1 .

    • Install the coolant pipe.
    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

    • Install the clip.

69. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the bracket.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

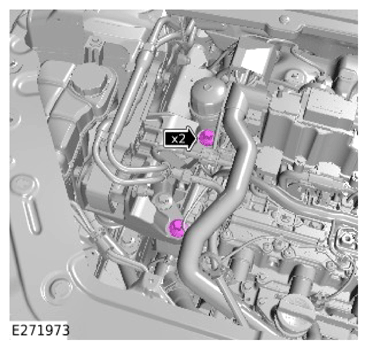

70. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the bracket.
    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

71. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Connect the 5 coolant hoses.
    • Install the 2 coolant hose clips.

72. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

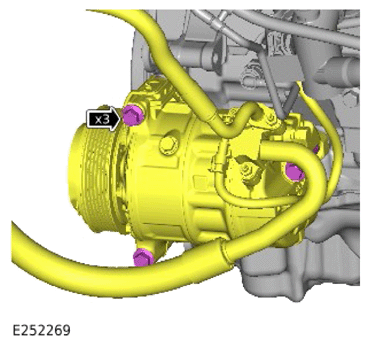

    • Cut the cable ties to securing the A/C  compressor onto the cooling module.
    • Reposition the A/C  compressor into the correct location.
    • Install and tighten the 3 bolts.

      Torque  : 24 Nm

    The following step(s) applies to:

    Mild Hybrid Electric Vehicles

73. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 25 Nm

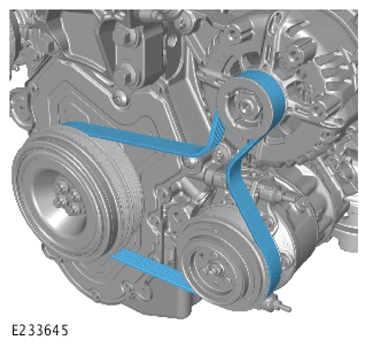

74. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the BISG  belt.

75. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the BISG  tensioner.
    • Install and tighten the 3 bolts.

      Torque  : 25 Nm

76. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the BISG  belt tensioner locking tool.

      Special Tool(s): JLR-303-1669

    • Slowly release the BISG  belt tensioner.

    The following step(s) applies to:

    Non-Mild Hybrid Electric Vehicles

77. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the accessory drive belt tensioner.
    • Install and tighten the bolt.

      Torque  : 47 Nm

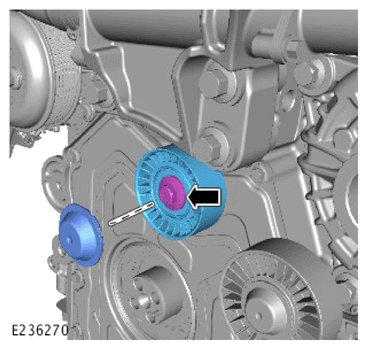

78. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the idler pulley.
    • Install and tighten the bolt.

      Torque  : 48 Nm

    • Install the dust cap.

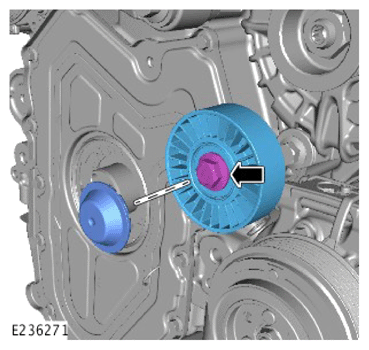

79. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the idler pulley.
    • Install and tighten the bolt.

      Torque  : 25 Nm

    • Install the dust cap.

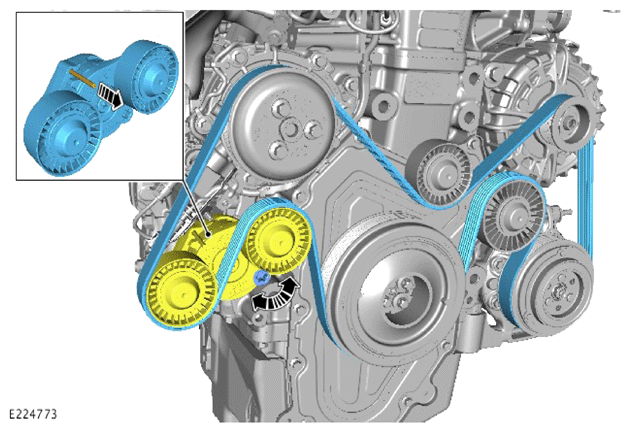

80. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the accessory drive belt.
    • Remove the tool and release the tension.

    The following step(s) applies to:

    Vehicles with manual transmission

81. Install the transmission.

    Refer to: MANUAL TRANSMISSION (G2312117)

82. Install the transmission.

    Refer to: MANUAL TRANSMISSION (G2312117)

    The following step(s) applies to:

    Vehicles with automatic transmission

83. Install the transmission.

    Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL (G2317398)

    The following step(s) applies to:

    All vehicles

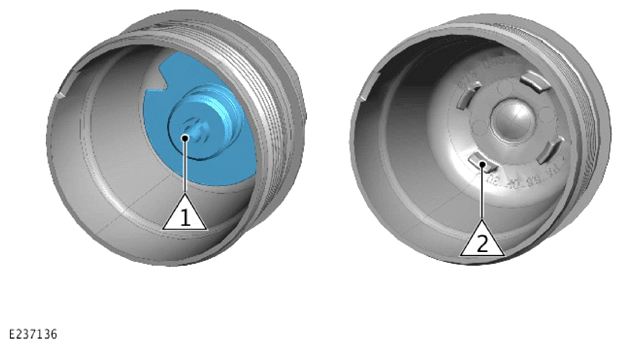

84. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Before installing the oil filter cap, check the by-pass valve (1)  is installed and correctly secured on the locating tabs (2)  .

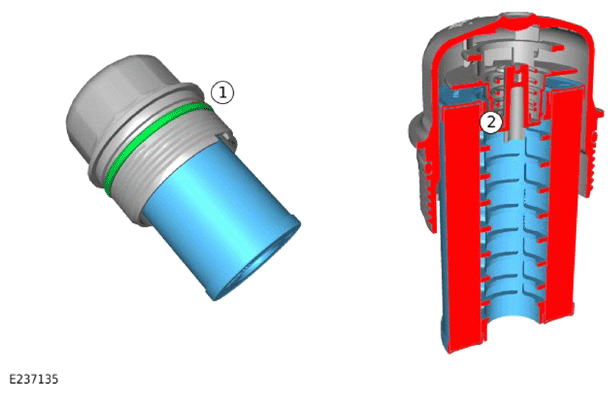

85. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install a new O-ring seal.

      Renew Part: Oil filter and O-ring seal kit Quantity: 1 .

    • Install a new oil filter element.
    • Lubricate the oil filter O-ring seal (1)  with clean engine oil and install the oil filter element into the cap.
    • Make sure the oil filter element is pushed correctly onto the bypass valve inside the oil filter cap (2)  .

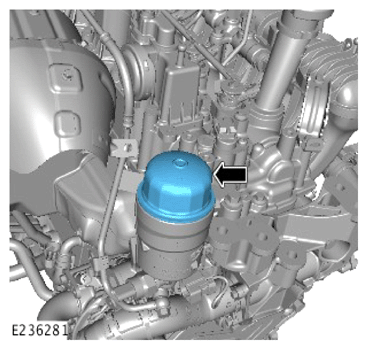

86. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the oil filter cap.

    Torque  : 28 Nm

87. Vacuum fill the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2298648)

88. Connect the 12 V system.

    Refer to: BATTERY, MOUNTING AND CABLES - VEHICLES WITH: NON-ELECTRIC VEHICLES (G2320137)

89. • Fill the engine with clean  engine oil.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
