Low Pressure Fuel Pump Assembly (G2767447): Removal

WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
Release the fuel system pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE .
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT .
Drain the fuel tank.
Refer to: FUEL TANK DRAINING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

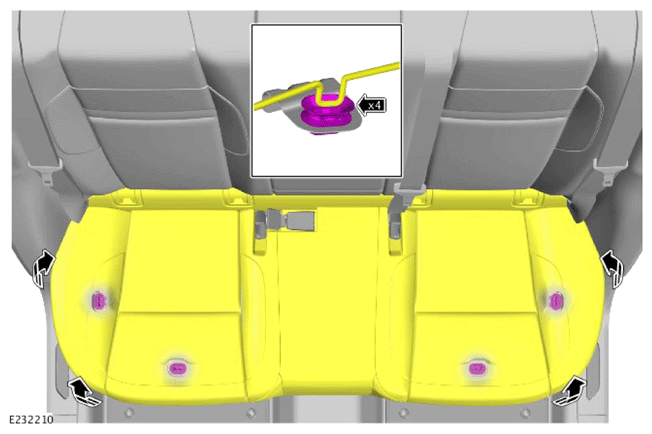

Release the second row seat cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

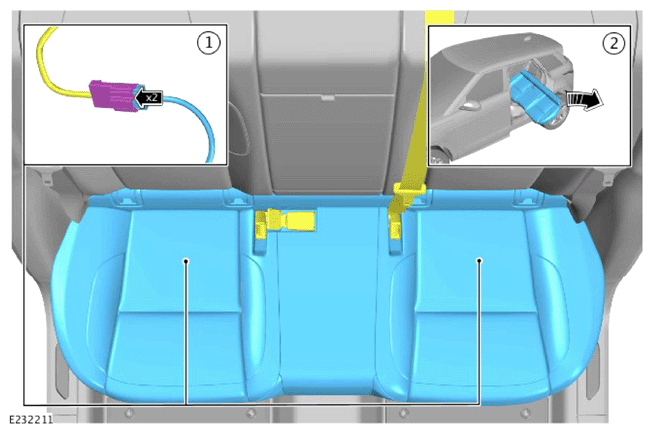

1. Disconnect the 2 electrical connectors.
2. Remove the second row seat cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

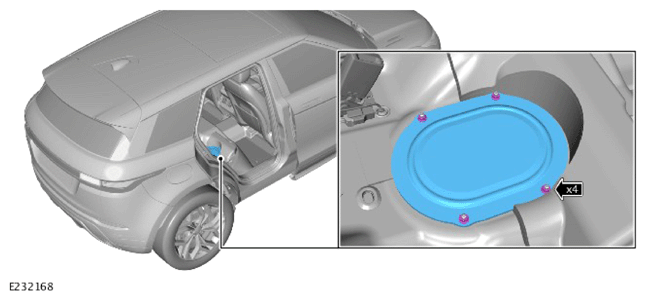

- Remove the 4 nuts.
- Remove the fuel pump access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

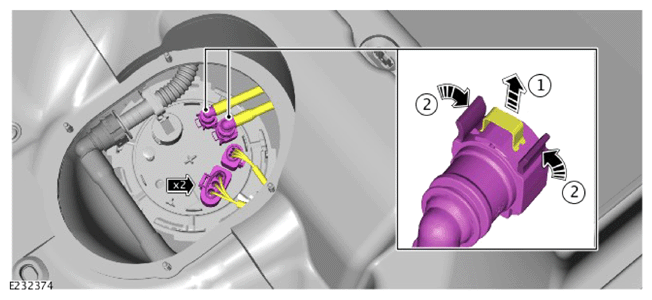

- NOTE: To release the quick-fit connections, gently pull the steel band secondary latch (1) to the out position, as indicated by arrow. Then press together the plastic primary latch tangs (2), as indicated, while pulling the pipe up and the off the spigot.

  Disconnect the 2 fuel pipes.
- Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

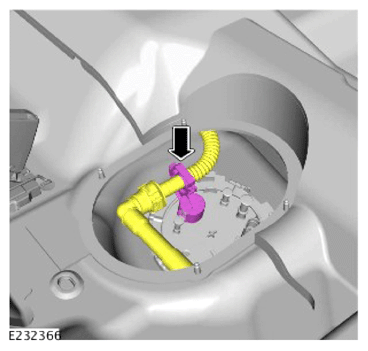

- Release the fuel vapor pipe bracket.
- Reposition the fuel vapor pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

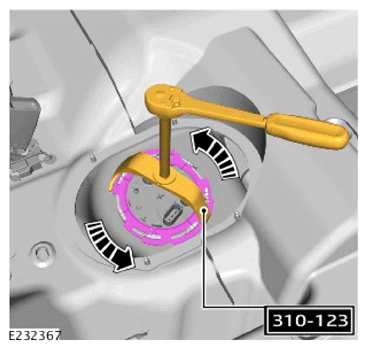

Use the special tool 310-123 to release the fuel pump retaining ring.

Special Tool(s): 310-123
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Note the position of the fuel pump module before removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

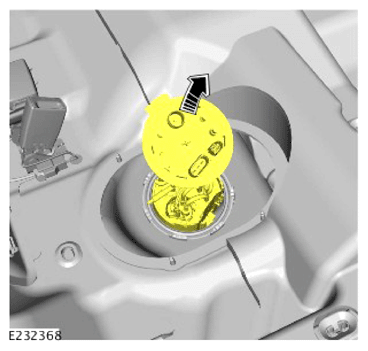

Release the fuel pump module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

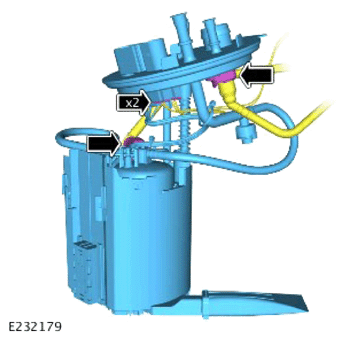

- Disconnect the 2 fuel pipes.
- Release the fuel vapor pipe.
- Disconnect the 2 electrical connectors.
- Remove the fuel pump module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

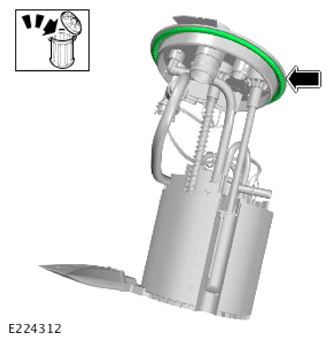

Remove and discard the fuel pump module seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

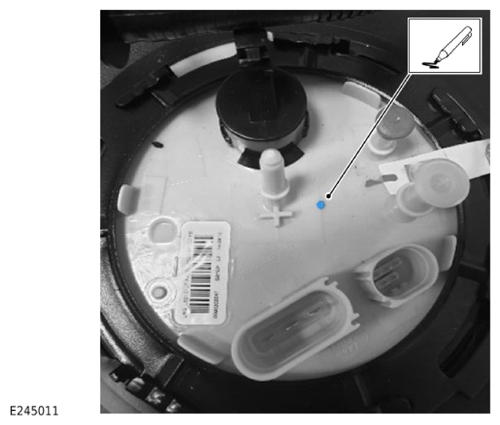

When installing a new fuel pump module, if there is a blue dot on the old fuel pump module, the new fuel pump module must be marked with the blue dot.
