Fuel Level Sensor (G2319934): Removal

WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the fuel pump module.
Refer to: LOW PRESSURE FUEL PUMP ASSEMBLY (G2767447)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

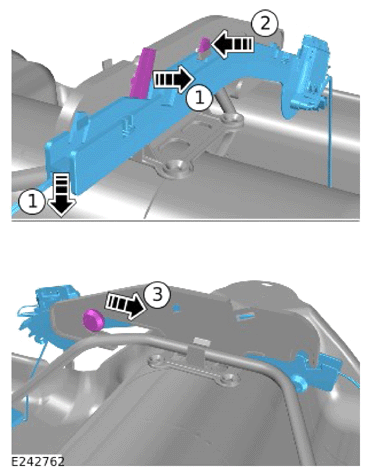

- Release the 2 clips.
- Release the 2 fasteners.
- Remove the fuel level sensor and bracket assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

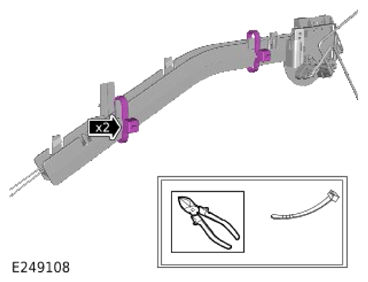

Remove and discard the 2 cable ties.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

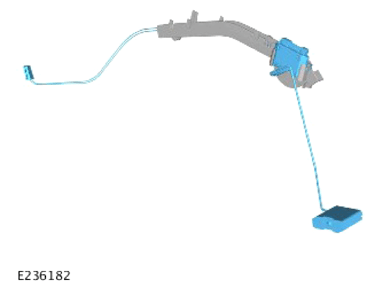

Remove the fuel level sensor from the bracket.
