Fuel Level Sensor (G2319934): Installation

  1. Install the fuel level sensor to the bracket.

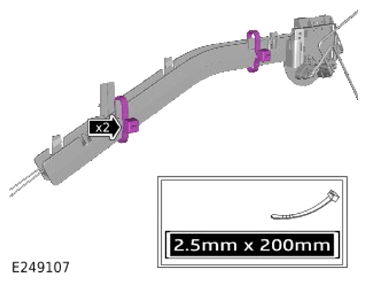

  2. G14452837Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install 2 new cable ties to the correct specification (2.5 mm x 200 mm nylon cable ties)  .

    • Install the fuel level sensor and bracket assembly.
    • Install the 2 fasteners.
    • Install the 2 clips.
  4. Install the fuel pump module.

    Refer to: LOW PRESSURE FUEL PUMP ASSEMBLY (G2767447)
