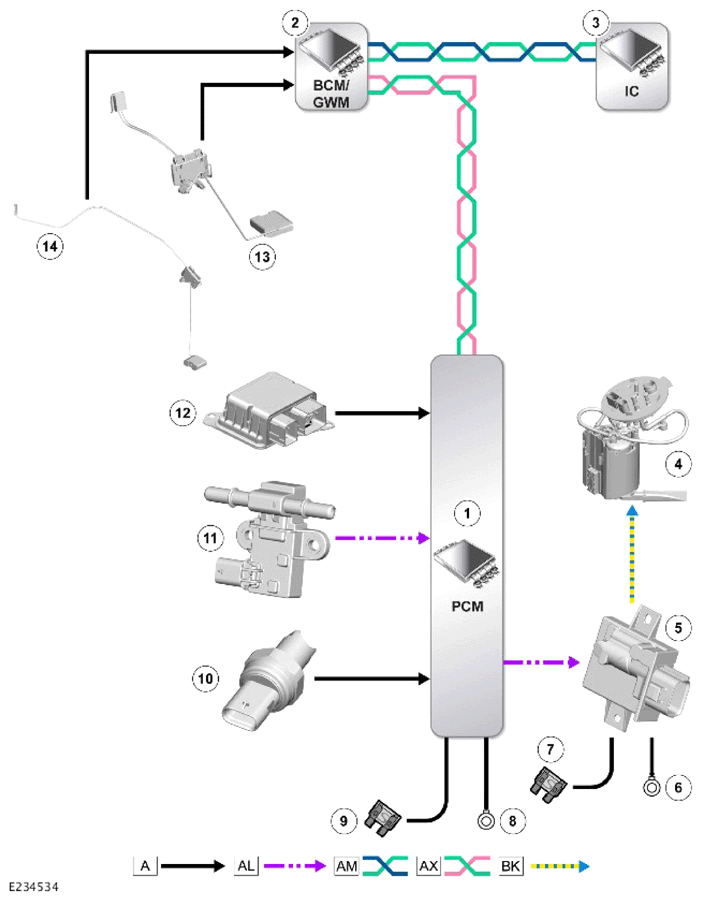

Control Diagram
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY: BK = LOW VOLTAGE (3-PHASE).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Instrument Cluster (IC) |
| 4 | Fuel pump module |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Ground |
| 9 | Power supply |
| 10 | Low fuel pressure sensor |
| 11 | Flex Fuel Sensor (FFS) - If equipped |
| 12 | Restraints Control Module (RCM) - Crash signal |
| 13 | Fuel level sensor 'A' |
| 14 | Fuel level sensor 'B' |
