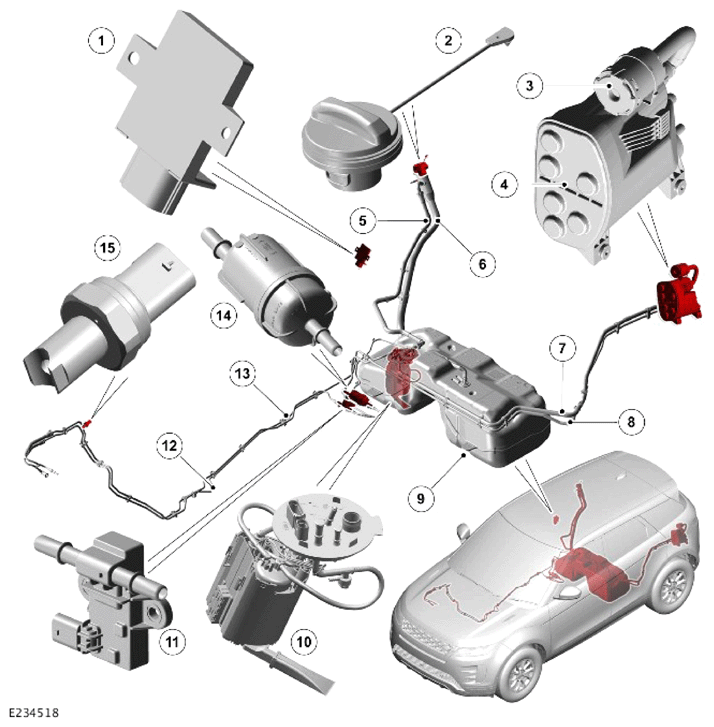

| 1 |
Fuel Pump Driver Module (FPDM) |
| 2 |
Fuel filler cap |
| 3 |
Filter - Evaporative emission canister |
| 4 |
Evaporative emission canister |
| 5 |
Breather hose - Fuel tank to fuel filler neck |
| 6 |
Fuel filler pipe assembly |
| 7 |
Breather hose - Fuel tank to evaporative emission canister |
| 8 |
Purge line - Evaporative emission canister to purge valve |
| 9 |
Fuel tank |
| 10 |
Fuel pump module |
| 11 |
Flex Fuel Sensor (FFS) |
| 12 |
Purge line - Evaporative emission canister to purge valve |
| 13 |
Fuel delivery line - Fuel tank to engine |
| 14 |
Fuel filter |
| 15 |
Low fuel pressure sensor |
