Exhaust System - INGENIUM I4 2.0L Petrol (G2319316)

Torque Specifications

NOTE: Numbers with a green background are a single use components.

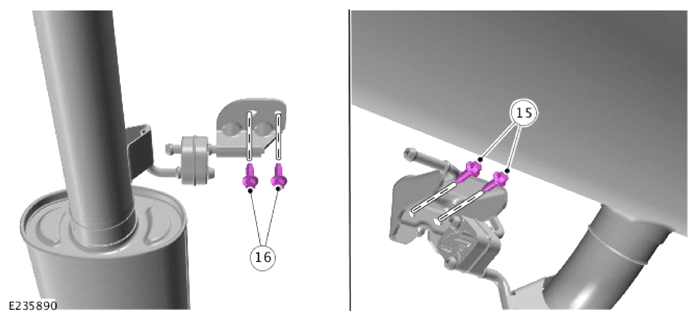

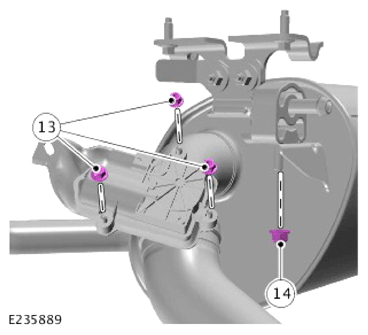

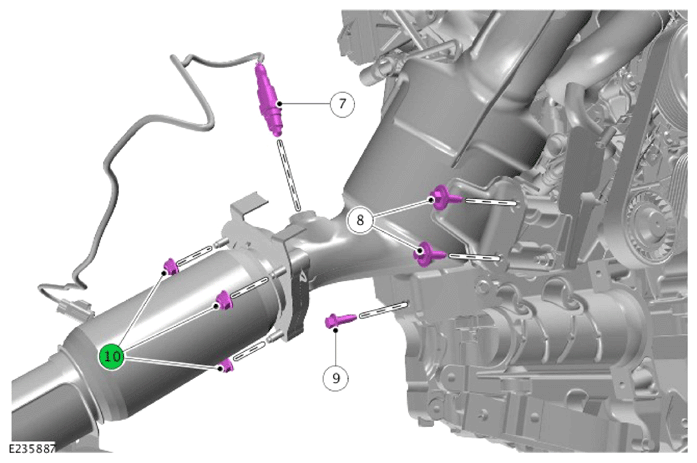

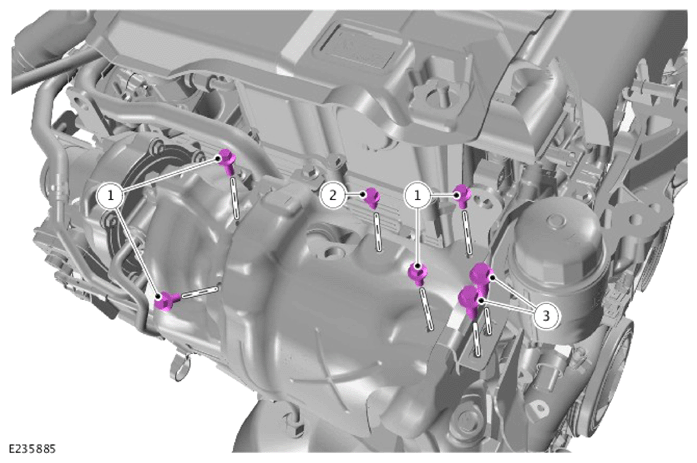

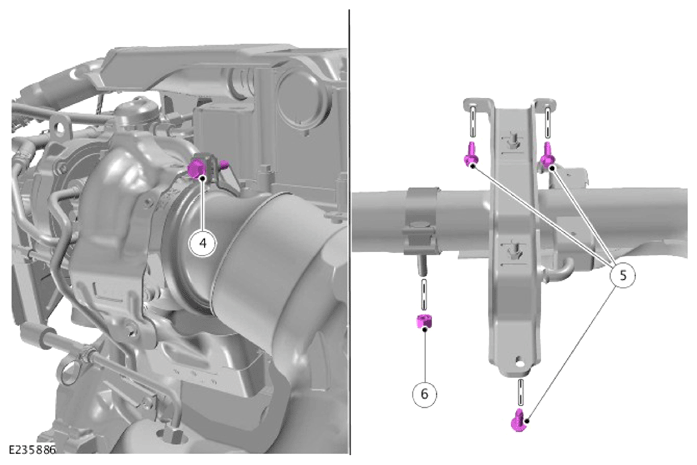

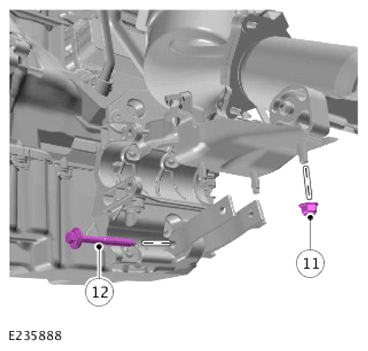

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Turbocharger heatshield M6 x 14 bolt	9	-	80
2	Turbocharger heatshield screw	9	-	80
3	Turbocharger heatshield bracket M8 x 20 bolt	24	18	-
4	Catalytic converter to turbocharger clamp	18	13	-
5	Exhaust intermediate section rear bracket M8 x 20 bolt	24	18	-
6	Rear exhaust silencer clamp	55	41	-
7	Heated Oxygen Sensor (HO2S)	48	35	-
8	Catalytic converter side bracket M8 x 20 bolt	24	18	-
9	Catalytic converter lower bracket M8 x 20 bolt	24	18	-
10	Exhaust pipe to catalytic converter M8 nut	24	18	-
11	Exhaust intermediate section front bracket M8 nut	24	18	-
12	Engine mount M12 x 100 bolt	80	60	-
13	Active Exhaust Module (AEM) nut	3	-	27
14	Rear silencer mounting rubber nut	24	18	-
15	Rear silencer rear hanger bracket M8 x 20 bolt	24	18	-
16	Rear silencer front hanger bracket M8 x 20 bolt	24	18	-
