Rear Silencer (G2297530): Removal

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the Active Exhaust Module (AEM).
- Release the wiring harness from the clip and reposition away from the exhaust system.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the exhaust clamp nut.
- If required, use a suitable cutting tool to release the exhaust clamp from the exhaust.
- Remove and discard the exhaust clamp.
- Remove the 4 bolts.
- Remove the 2 nuts.
- Release the 4 hangers and remove the rear exhaust silencer.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

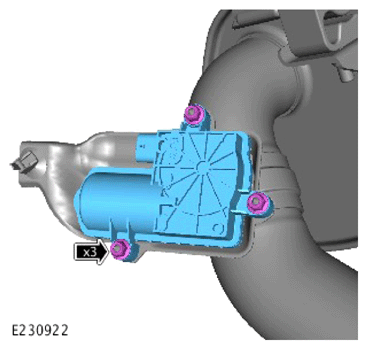

- Remove the 3 nuts.
- Remove the AEM.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

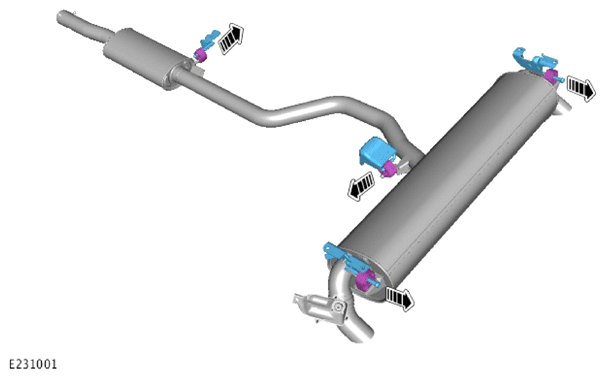

Remove the 4 exhaust hanger brackets from the exhaust system.
