Exhaust System - INGENIUM I4 2.0L Petrol (G2299329): Removal

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure the exhaust system is supported at all times.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 3 nuts.
- Reposition the wiring harness bracket away from the exhaust system.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the Active Exhaust Module (AEM).
- Release the wiring harness from the clip and reposition away from the exhaust system.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

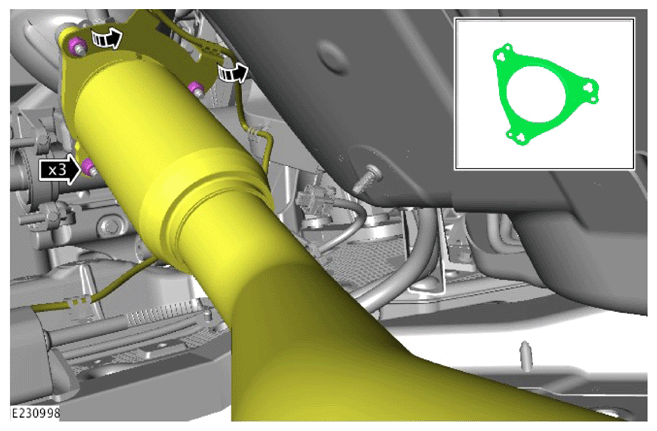

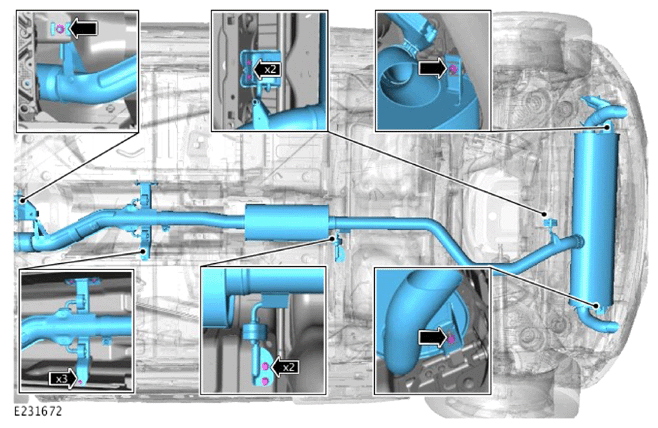

- Remove the 7 bolts.
- Remove the 3 nuts.
- Remove the exhaust system.
- Remove and discard the gasket.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 nuts.
- Remove the AEM.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

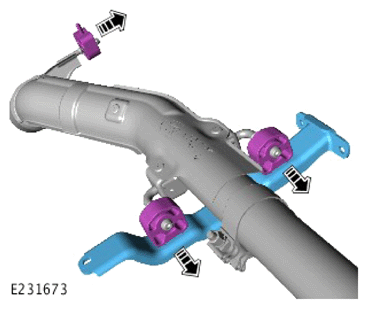

- Remove the front exhaust mounting rubber
- Remove the exhaust hanger bracket from the front exhaust section.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

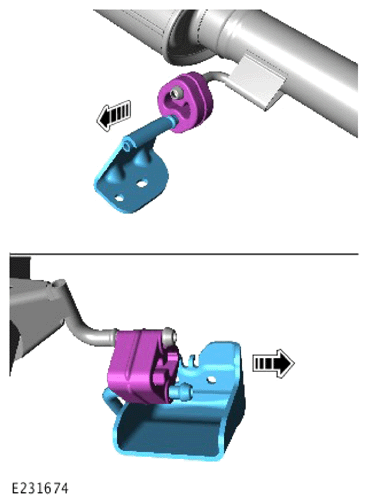

Remove the exhaust hanger brackets from the rear exhaust section.
