Active Exhaust Actuator (G2260630): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post ramp.
Refer to: JACKING AND LIFTING .
Remove the rear silencer.
Refer to: REAR SILENCER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

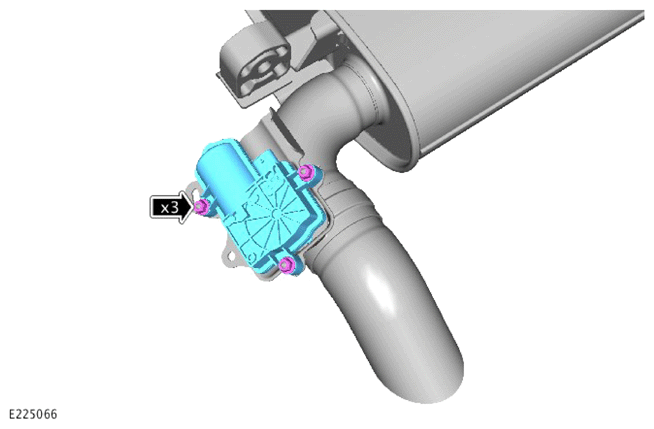

- Remove the 3 nuts.
- Remove the active exhaust actuator.
