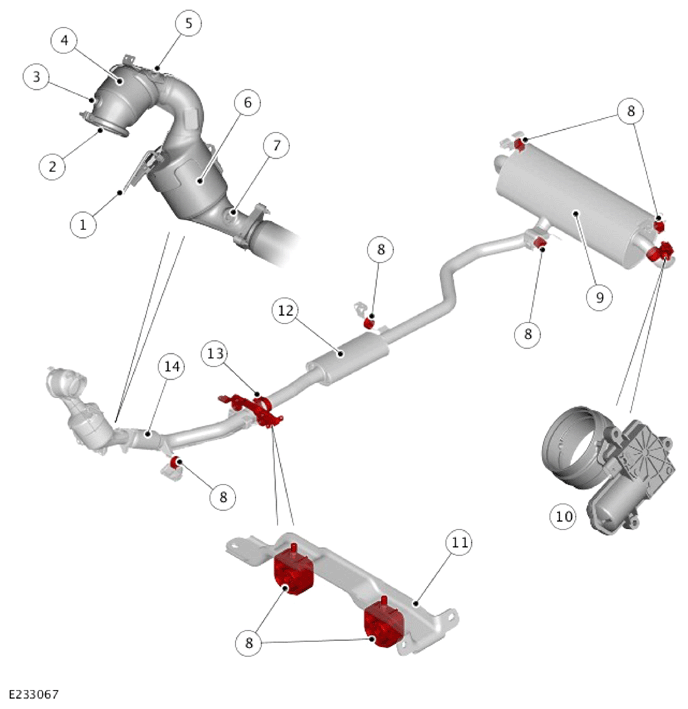

| 1 |
Pipe of the exhaust back pressure sensor - Vehicles equipped with Gasoline Particulate Filter (GPF) |
| 2 |
Flange connection to turbocharger |
| 3 |
Threaded hole - Pre catalyst Heated Oxygen Sensor (HO2S) |
| 4 |
Pre catalytic converter |
| 5 |
Threaded hole - Mid catalyst HO2S |
| 6 |
Main catalytic converter or Gasoline Particulate Filter (GPF) |
| 7 |
Threaded hole - Post catalyst HO2S (North American Specification (NAS) market vehicles only) |
| 8 |
Mounting rubber (quantity 7) |
| 9 |
Rear silencer |
| 10 |
Active exhaust actuator |
| 11 |
Exhaust brace |
| 12 |
Center silencer |
| 13 |
Clamp |
| 14 |
Flexible coupling |
