Thermostat (G2308723): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the cooling module.
Refer to: COOLING MODULE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

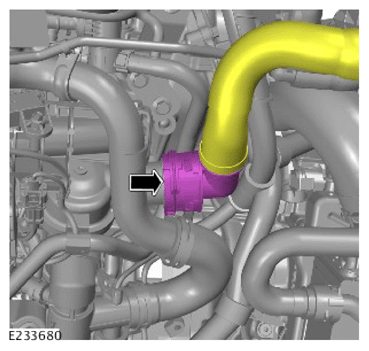

Disconnect the radiator coolant top hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

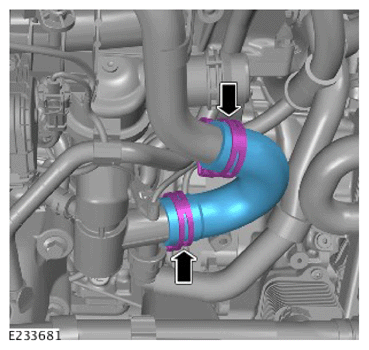

- Release the 2 hose clamps.
- Remove the coolant bypass hose from the thermostat housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

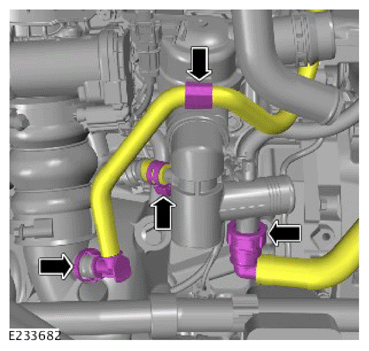

- Release the vacuum pipe clip.
- Disconnect the vacuum pipe.
- Release the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

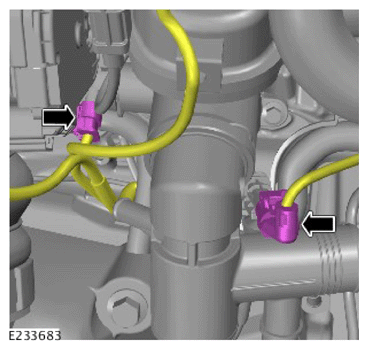

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

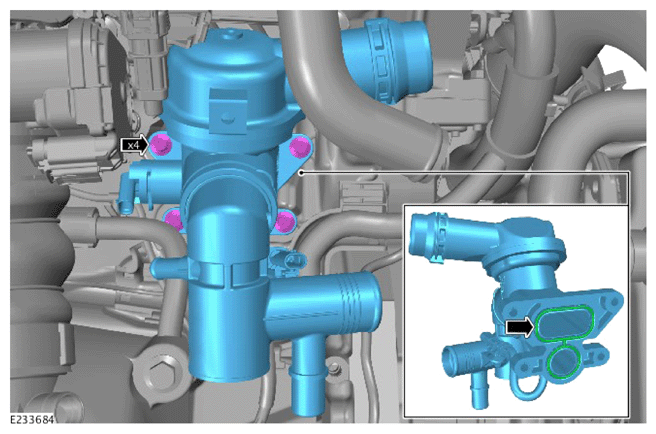

- Remove the 4 bolts.
- Remove the thermostat.
- Discard the gasket.
