Radiator (G2308134): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the cooling module.
Refer to: COOLING MODULE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

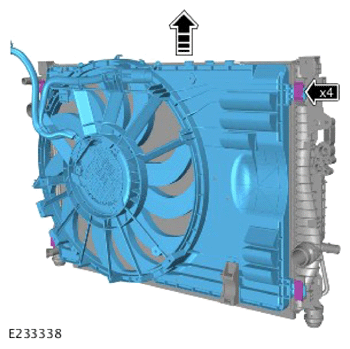

Remove the electric cooling fan and shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.

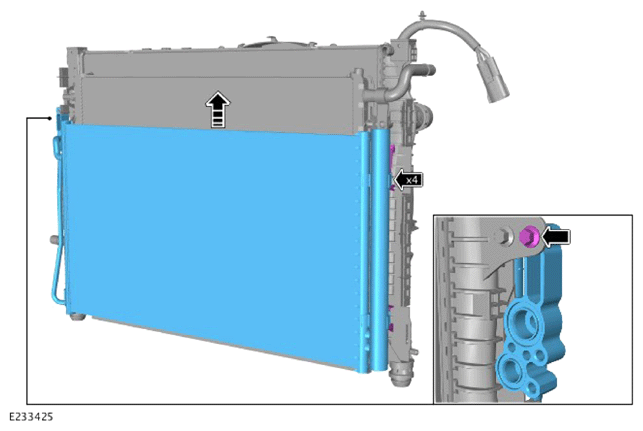

- Remove the Air Conditioning (A/C) condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.

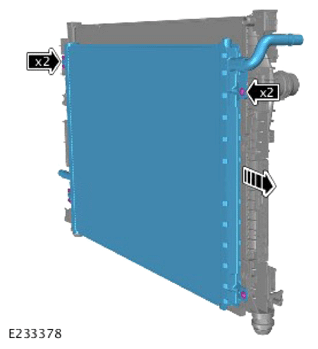

- Remove the charge air radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

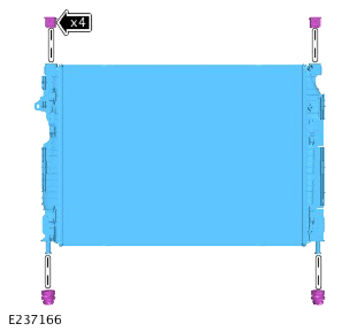

Remove the 4 radiator mounting rubbers.
