Cooling Module (G2308097): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Release the coolant pump.
Refer to: COOLANT PUMP - CHARGE AIR COOLER .
Remove the hood latch panel.
Refer to: HOOD LATCH PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Disconnect the A/C pipes.
- Remove and discard the 2 seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 right coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 left coolant hoses.
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

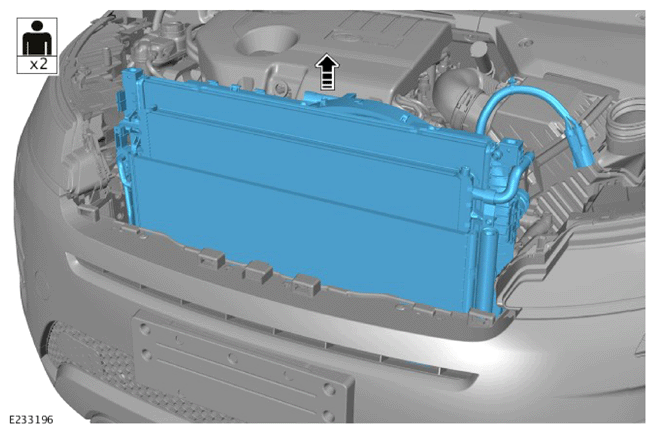

With assistance, remove the cooling module.
