Coolant Pump - Vehicles With: Non-Electric Vehicles (G2308653): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the coolant pump.

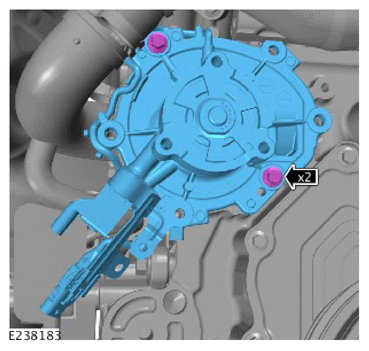

- Install and tighten the 2 bolts as illustrated.
  Torque : 6 Nm
- Install the remaining 4 bolts.
- Tighten the 6 bolts.
  Torque : 12 Nm
Connect the 2 electrical connectors.
- Install the coolant pump pulley.
- Install the 3 bolts finger tight at this stage.
Install the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT - VEHICLES WITH: NON-ELECTRIC VEHICLES .
Tighten the coolant pump pulley bolts.
Torque : 25 Nm
Install the front right wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
