Coolant Expansion Tank (G2300790): Removal
WARNING:
Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to doing this procedure.
CAUTION:
- The engine cooling system must be maintained with the correct concentration and type of anti-freeze solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
- Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
- Never remove the coolant expansion tank cap under any circumstances while the engine is operating. Failure to follow this instruction may result in damage to the engine.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
-
WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.

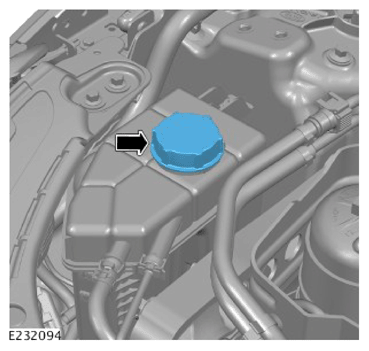

Remove the coolant expansion tank filler cap.
- Using a suitable syringe, remove the coolant from the expansion tank.
-
CAUTION: Be prepared to collect escaping coolant.

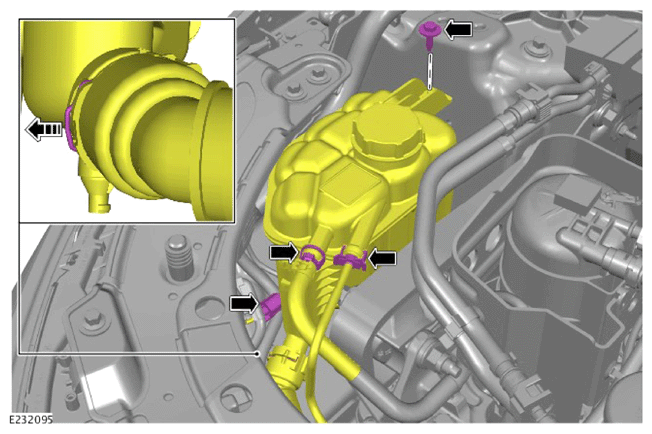

- Remove the coolant expansion tank mounting bracket bolt.
- Disconnect the 2 coolant pipes.
- Disconnect the coolant hose.
- Disconnect the electrical connector.

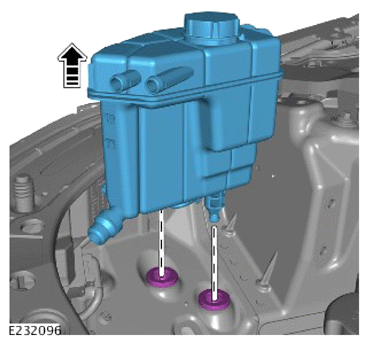

Remove the coolant expansion tank.
-
NOTE: Do not disassemble further if the component is removed for access only.

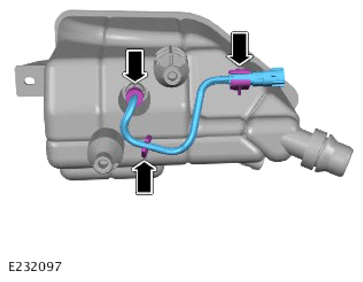

Remove the coolant expansion tank level sensor.
