Auxiliary Radiator (G2473144): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .

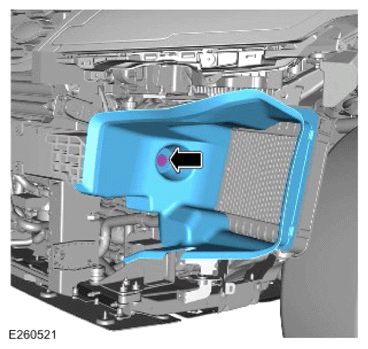

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the air duct.

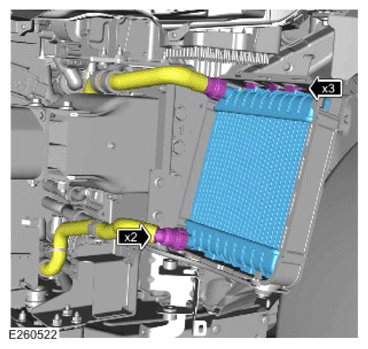

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 engine coolant hoses.
- Release the 3 clips.
- Remove the auxiliary radiator.
