Engine Cooling - INGENIUM I4 2.0L Petrol (G2342777): Description: Radiator

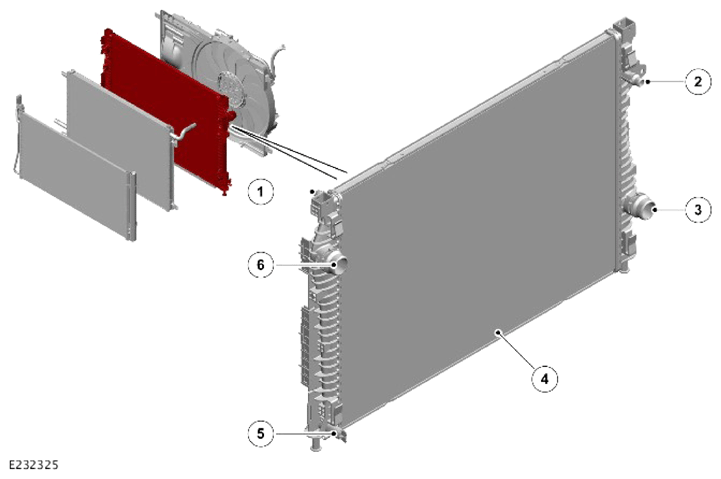

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Coolant expansion tank |
| 2 | Hose connection - Automatic Transmission Fluid (ATF) warming valve |
| 3 | Hose connection - Radiator lower hose |
| 4 | Radiator |
| 5 | Radiator drain plug |
| 6 | Hose connection - Radiator upper hose |
The radiator is a horizontal flow type with an aluminum core and plastic end tanks in the upper and lower position of the radiator. The radiator uses brazed aluminum pipe technology to reduce weight.
The radiator locates in the vehicle by locating spigots and supports integrated into the end tanks. The supports are installed in rubber isolator bushes in the lower support bracket. The upper mounting of the end tanks is through a cross-strut attached to the vehicle body.
A drain plug integrates on the bottom of the radiator. Engine coolant outlet and inlet connections are incorporated into the left and right end tanks respectively.
