Electric Cooling Fan

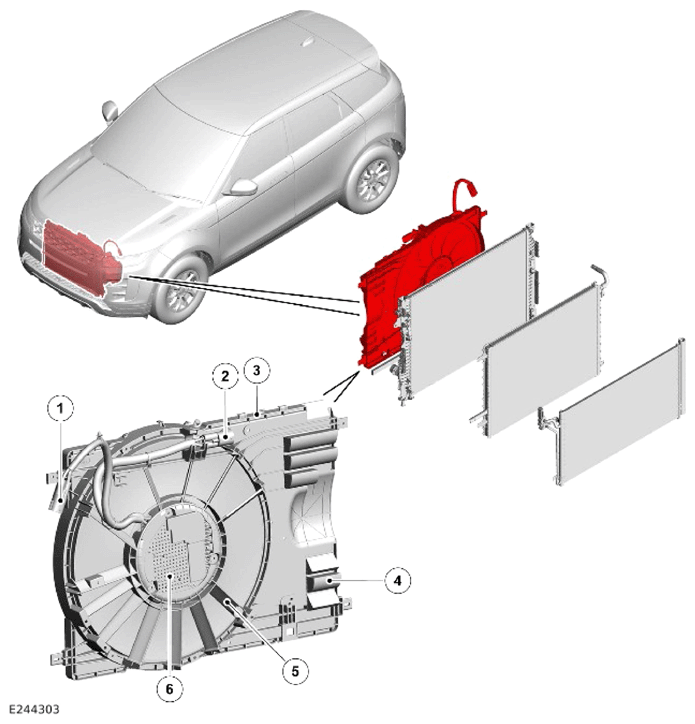

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connector - Powertrain Control Module (PCM) |
| 2 | Electrical connector - PCM |
| 3 | Electric cooling fan shroud |
| 4 | Electric cooling fan air flow flap |
| 5 | Electric cooling fan blade |
| 6 | Electric cooling fan motor |
The electric cooling fan is installed in a shroud attached to the rear of the radiator. The electric cooling fan is operated by the engine cooling fan control module, which is integrated into the electric cooling fan motor. The Powertrain Control Module (PCM) controls the engine cooling fan control module in hardwired.
