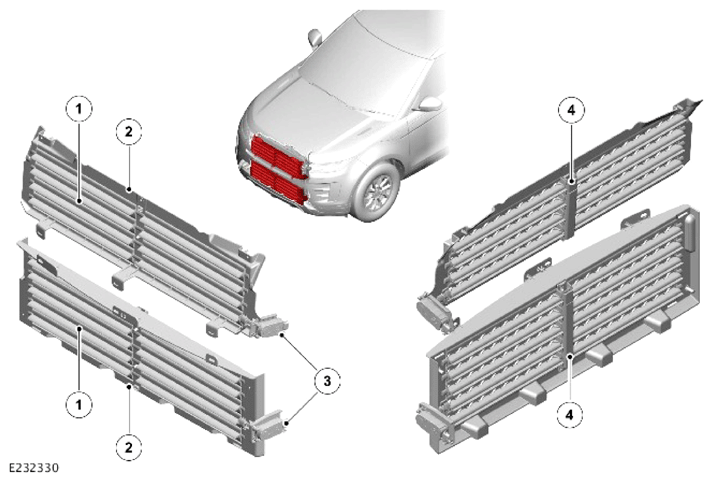

Active Grille Air Shutter
| ITEM | DESCRIPTION |
|---|---|
| 1 | Vane |
| 2 | Housing |
| 3 | Motor |
| 4 | Vane rod |
The upper active grille air shutter is installed behind the radiator grille. The lower active grille air shutter is installed behind the front bumper. The upper and lower active grille air shutter incorporate moveable vanes that control the air flow into the upstream main duct.
