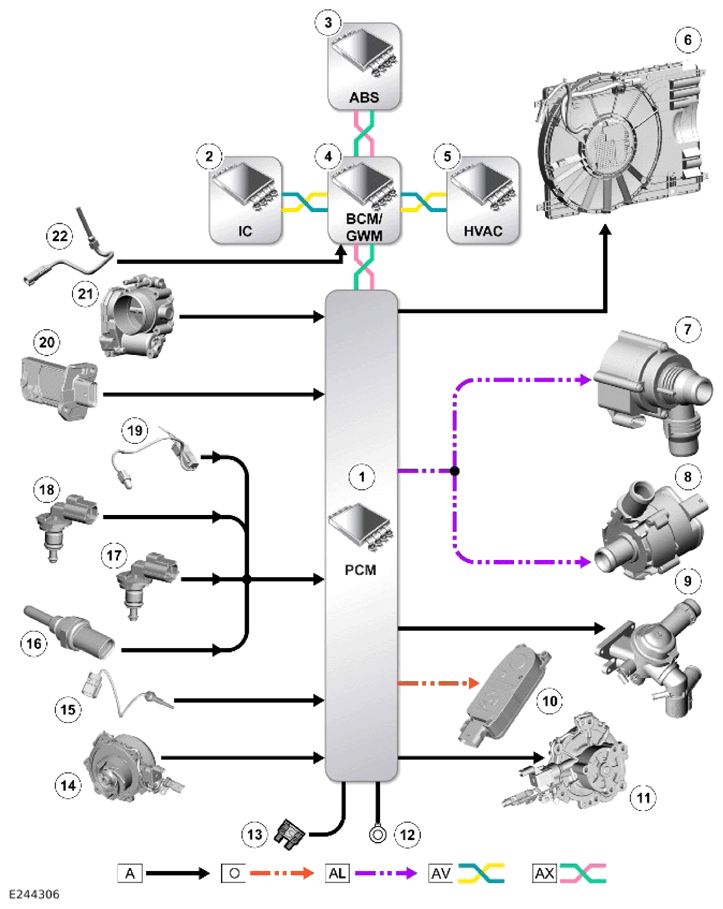

Control Diagram - 1 Of 1
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | HVAC control module (HVAC) |
| 6 | Electric cooling fan |
| 7 | Auxiliary coolant pump |
| 8 | Charge air coolant pump |
| 9 | Wax thermostat with electrical heater element |
| 10 | Active grille air shutter motor |
| 11 | Variable coolant pump |
| 12 | Ground |
| 13 | Power supply |
| 14 | Variable coolant pump shroud position sensor |
| 15 | Cylinder head temperature sensor |
| 16 | Cylinder block temperature sensor |
| 17 | Engine coolant temperature sensor - Wax thermostat housing |
| 18 | Radiator outlet temperature sensor |
| 19 | Ambient Air Temperature (AAT) sensor |
| 20 | Mass Air Flow and Temperature (MAFT) sensor |
| 21 | Electric throttle |
| 22 | Engine coolant level sensor |
