Component Location - 2 Of 4

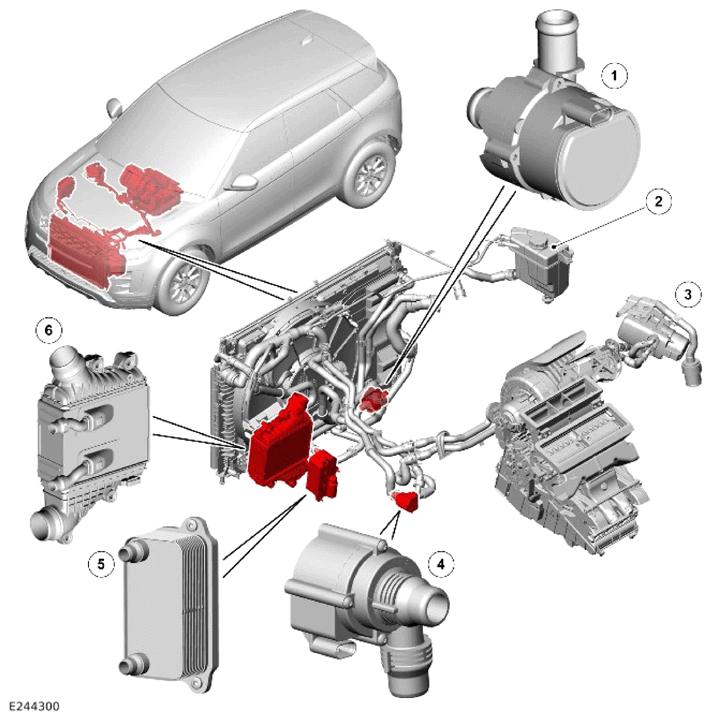

G14450611Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Charge air coolant pump
2 Coolant expansion tank
3 Fuel Fired Booster Heater (FFBH) - If equipped
4 Auxiliary coolant pump
5 Automatic Transmission Fluid (ATF) cooler
6 Charge air cooler
