501-20C Pedestrian Protection System Wiring Diagrams

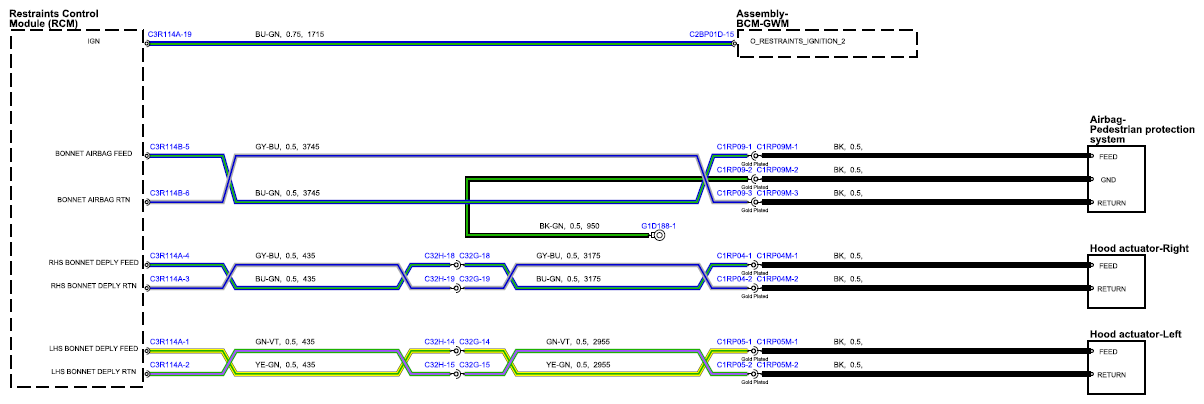

Fig 1: Pedestrian Protection System Circuit Diagram

G15597701

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
