501-20A SEATBELT System Wiring Diagrams

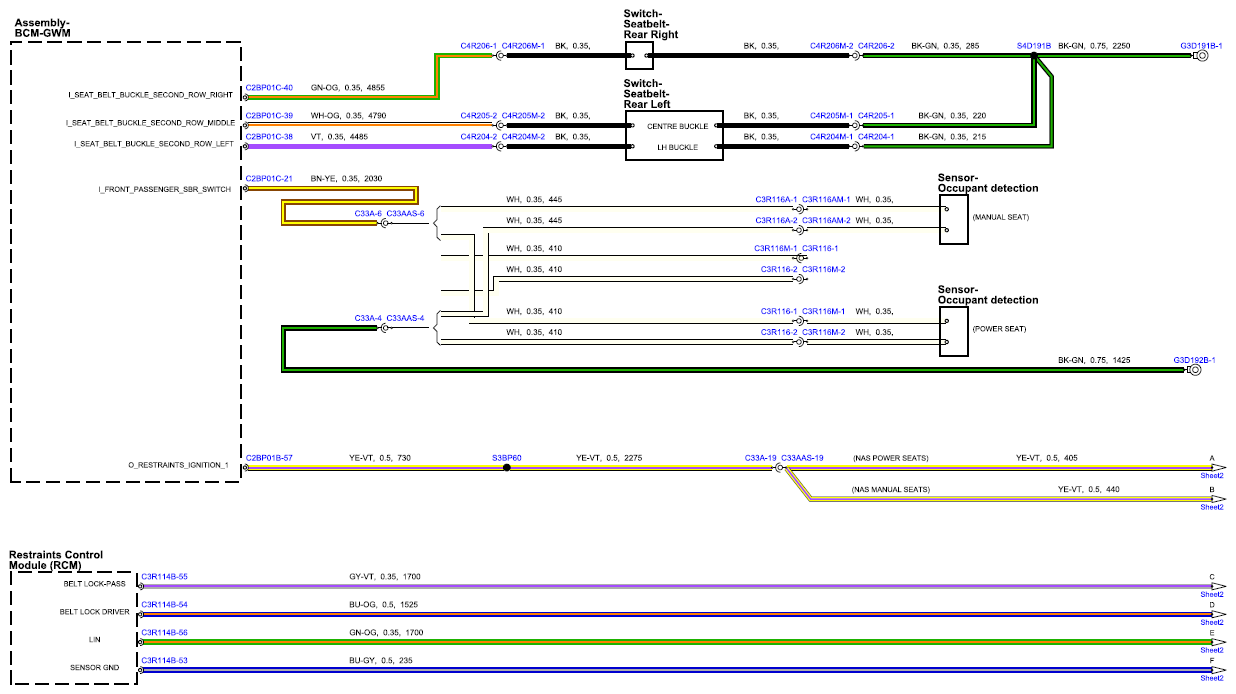

Fig 1: Seatbelt System Circuit Diagram (Sheet 1)
G15597694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

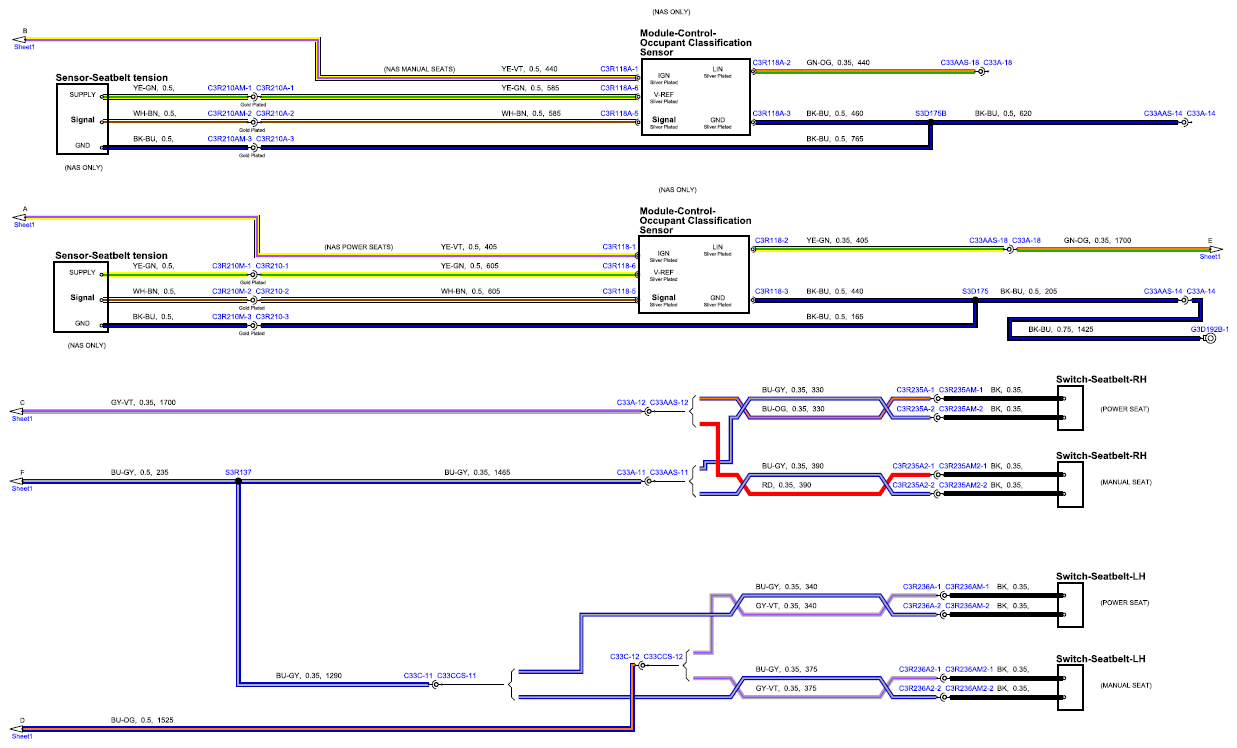

Fig 2: Seatbelt System Circuit Diagram (Sheet 2)
G15597695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
