Central door locking system

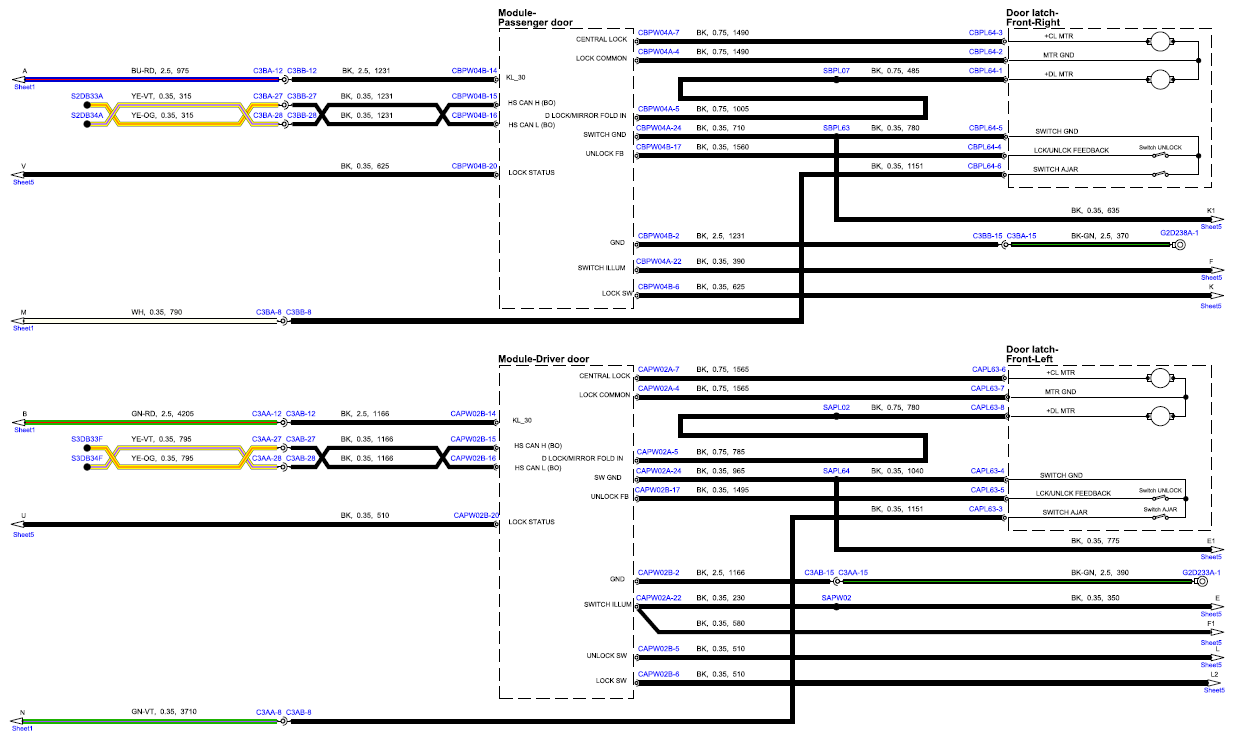

Fig 1: Central Door Locking System Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

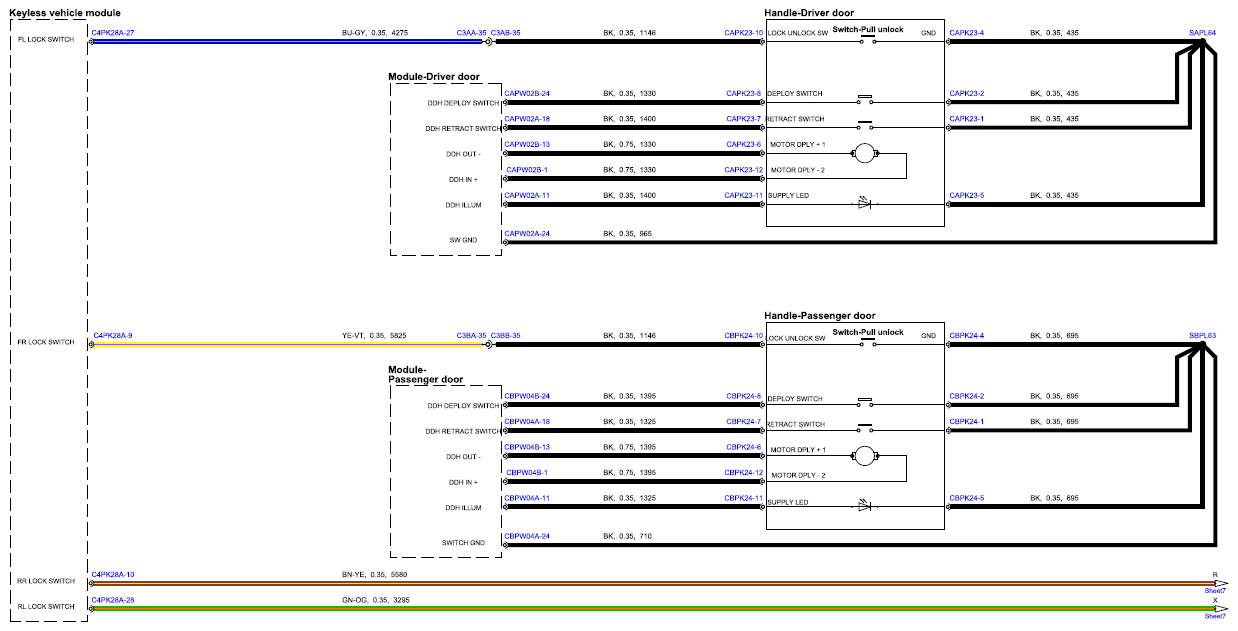

Fig 2: Central Door Locking System Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

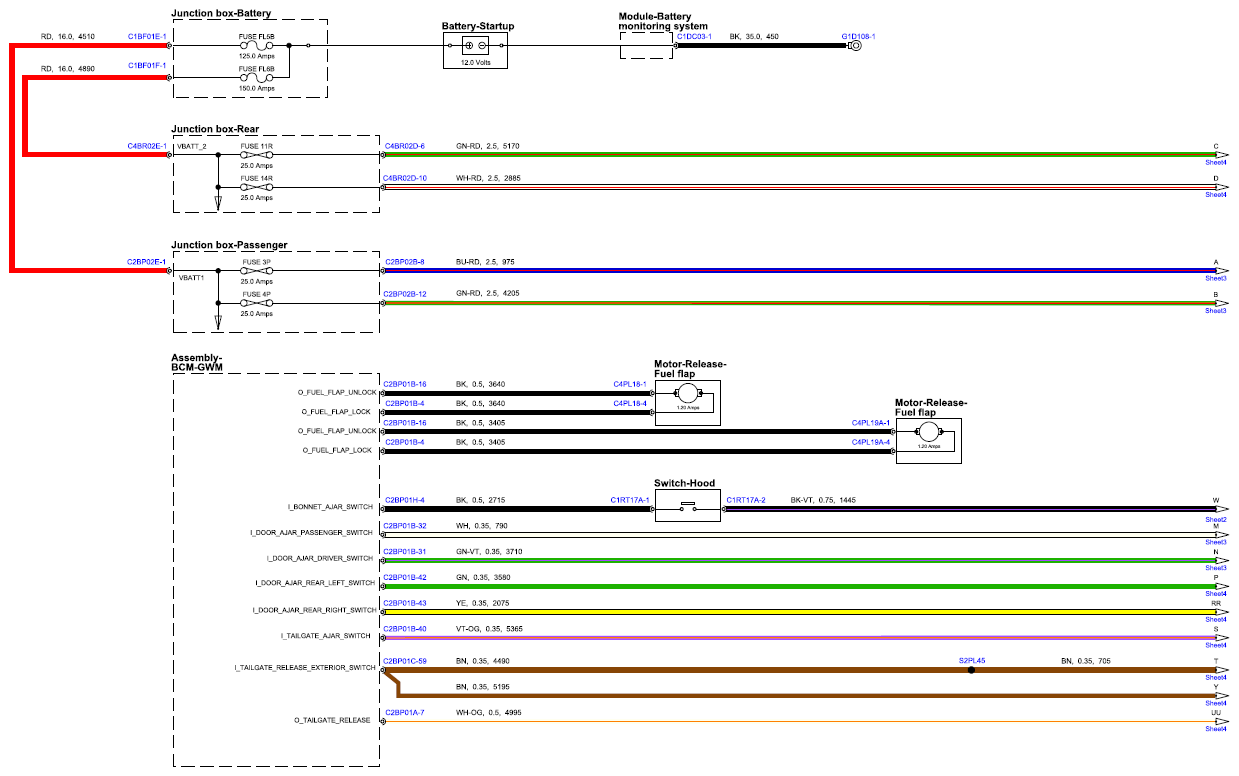

Fig 3: Central Door Locking System Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

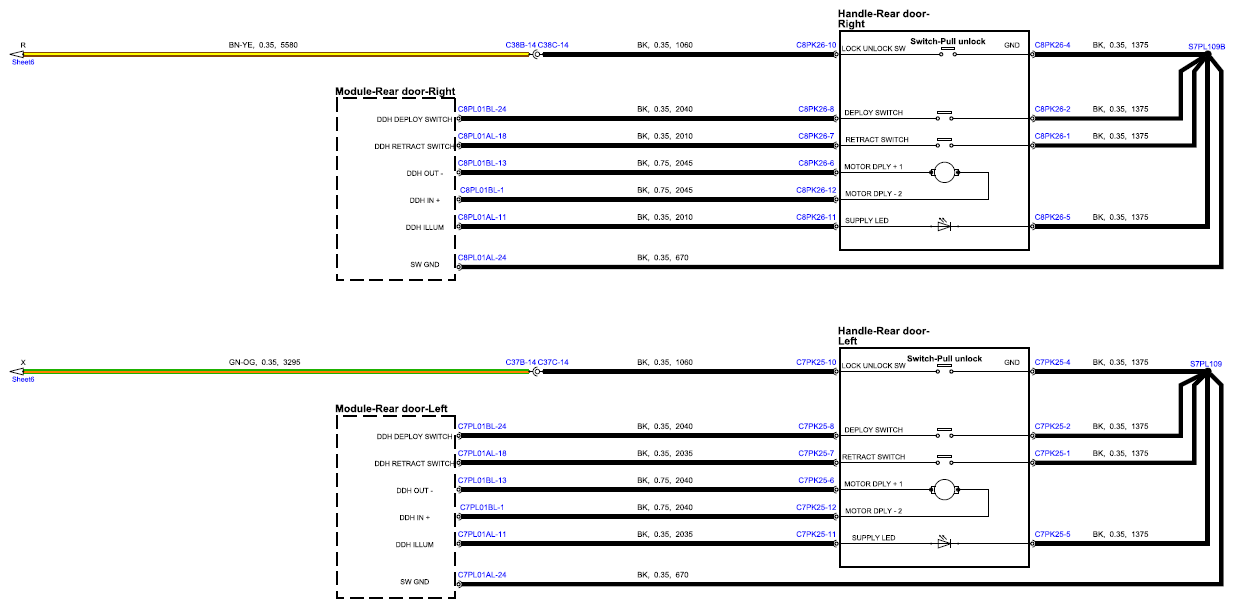

Fig 4: Central Door Locking System Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

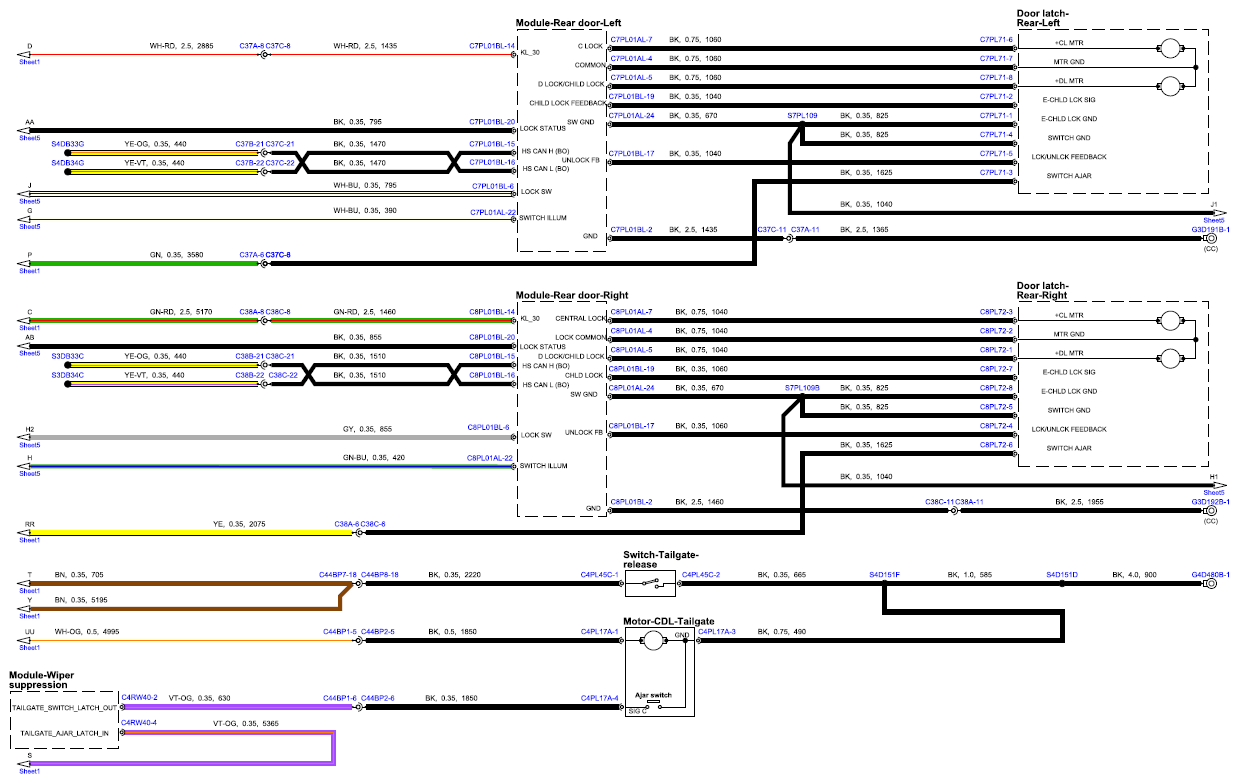

Fig 5: Central Door Locking System Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

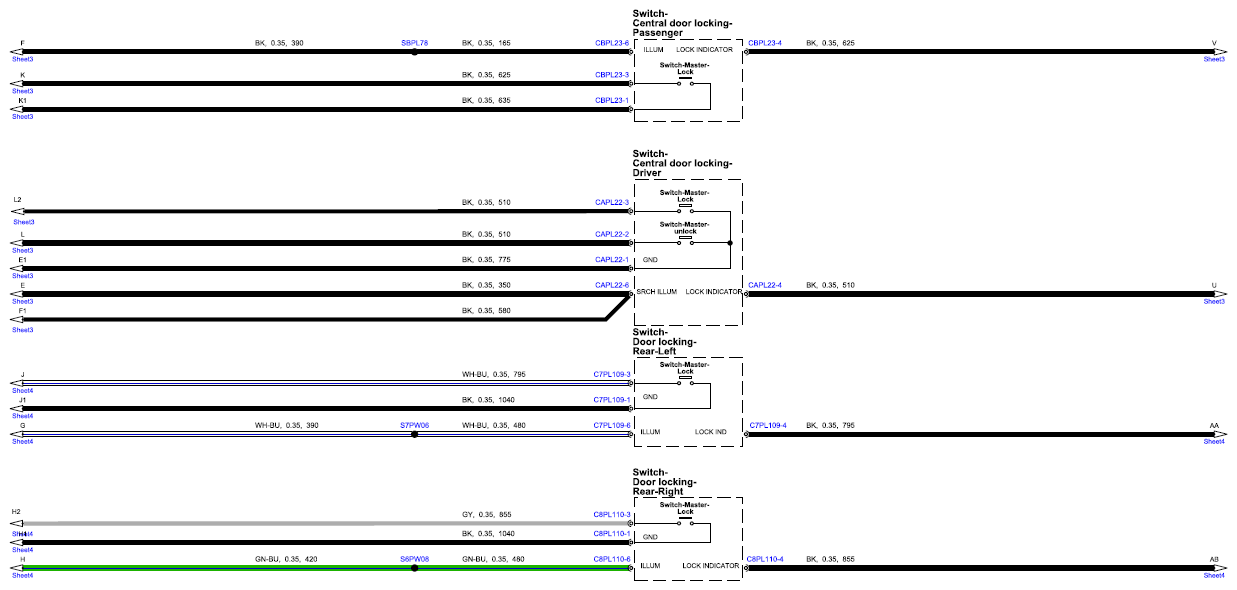

Fig 6: Central Door Locking System Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

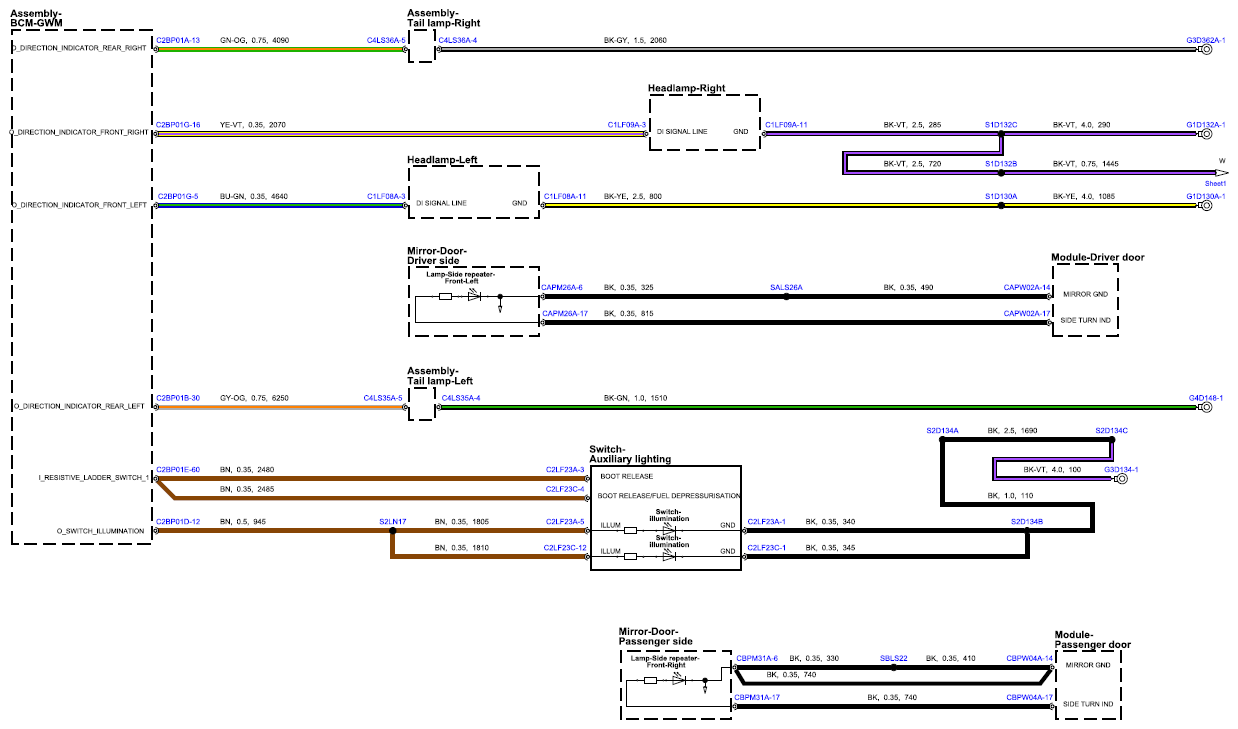

Fig 7: Central Door Locking System Circuit Diagram (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
