Switchpack - Instrument panel (outboard)

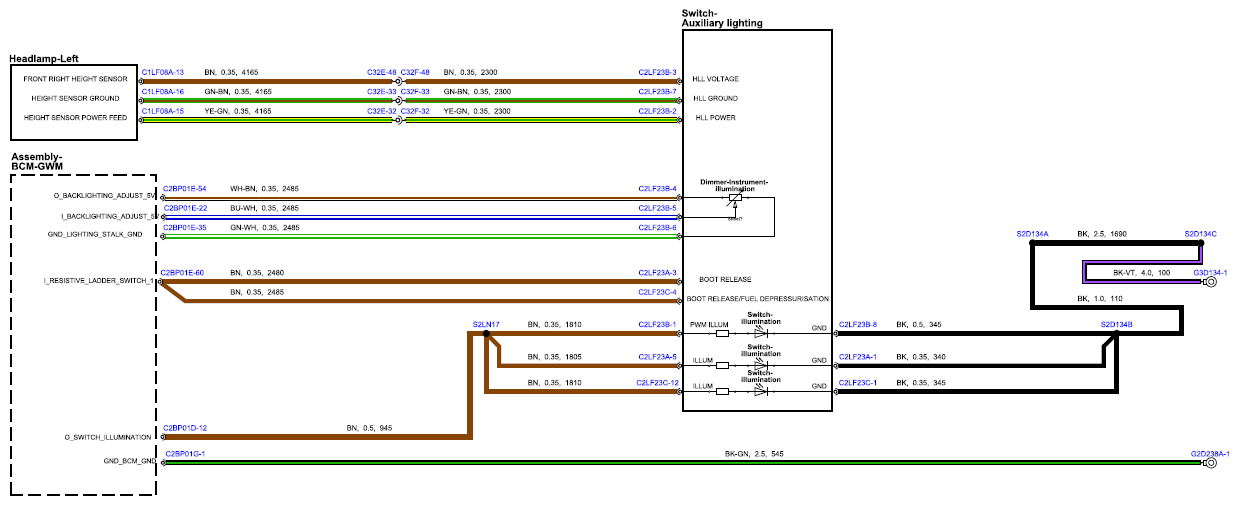

Fig 1: Switchpack Circuit Diagram - Instrument Panel (Outboard)

G15597674

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
