Heated - Power positioning

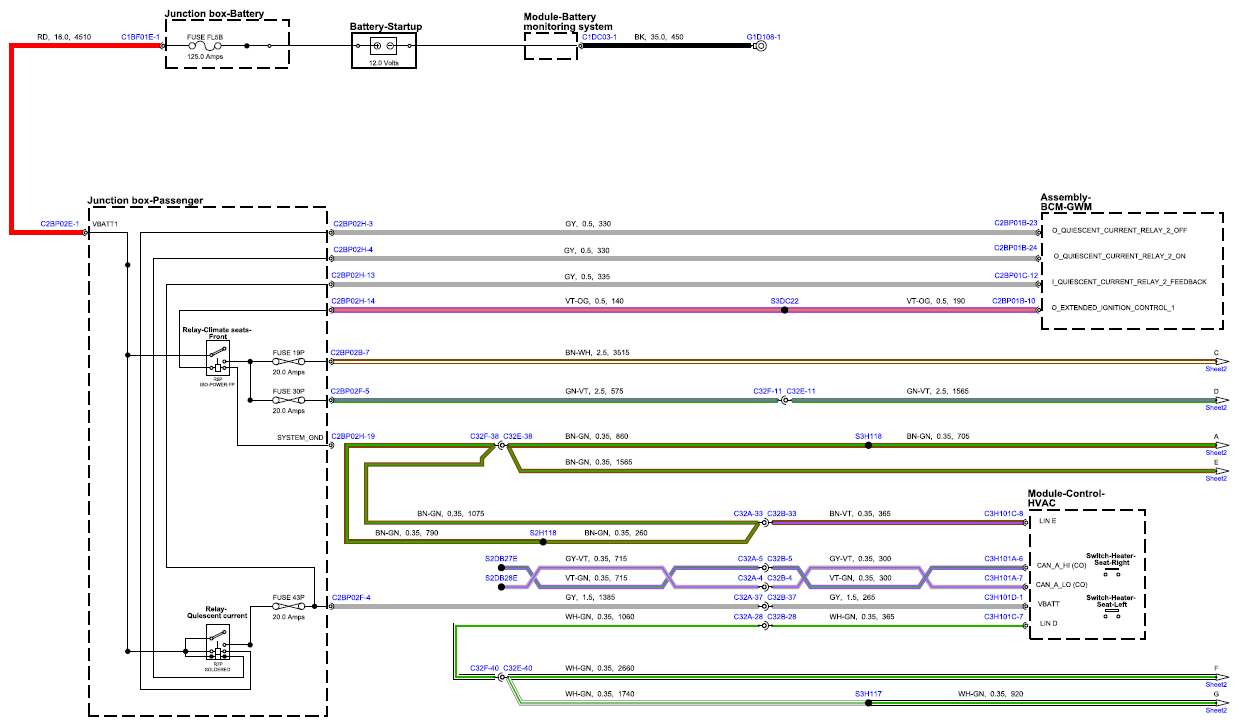

Fig 1: Heated - Power Positioning (Sheet 1)
G15597665Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

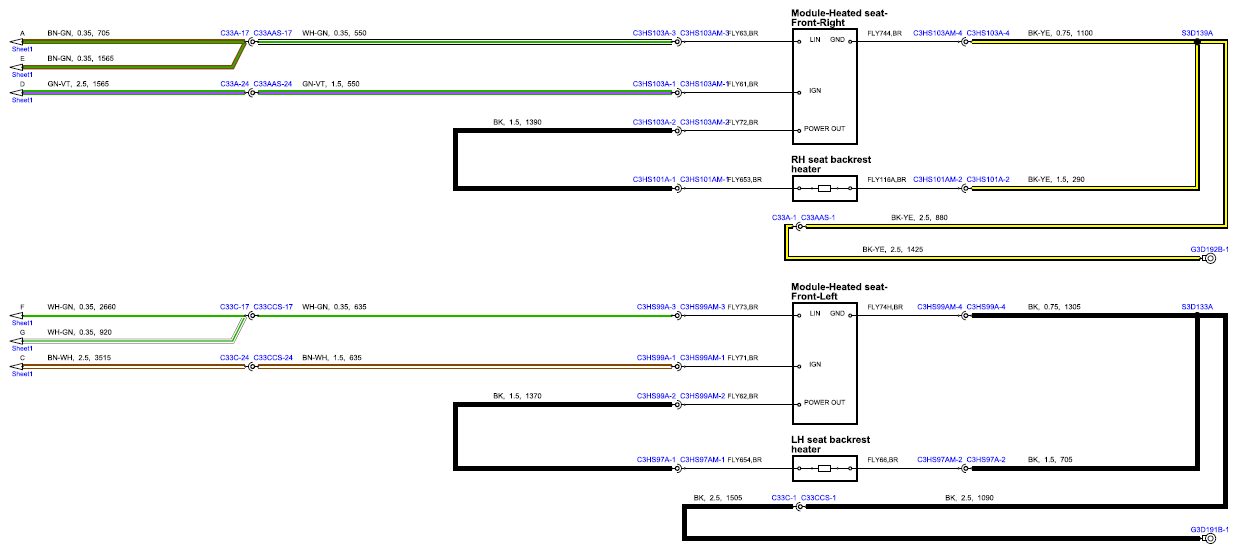

Fig 2: Heated - Power Positioning (Sheet 2)
G15597666Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
