Driver - Memory

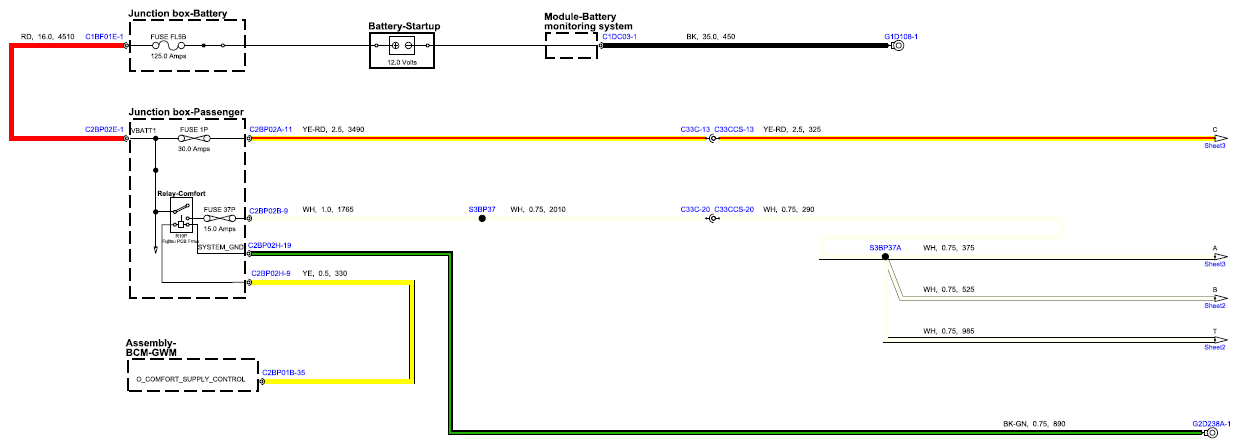

Fig 1: Driver - Memory Circuit Diagram (Sheet 1)
G15597652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

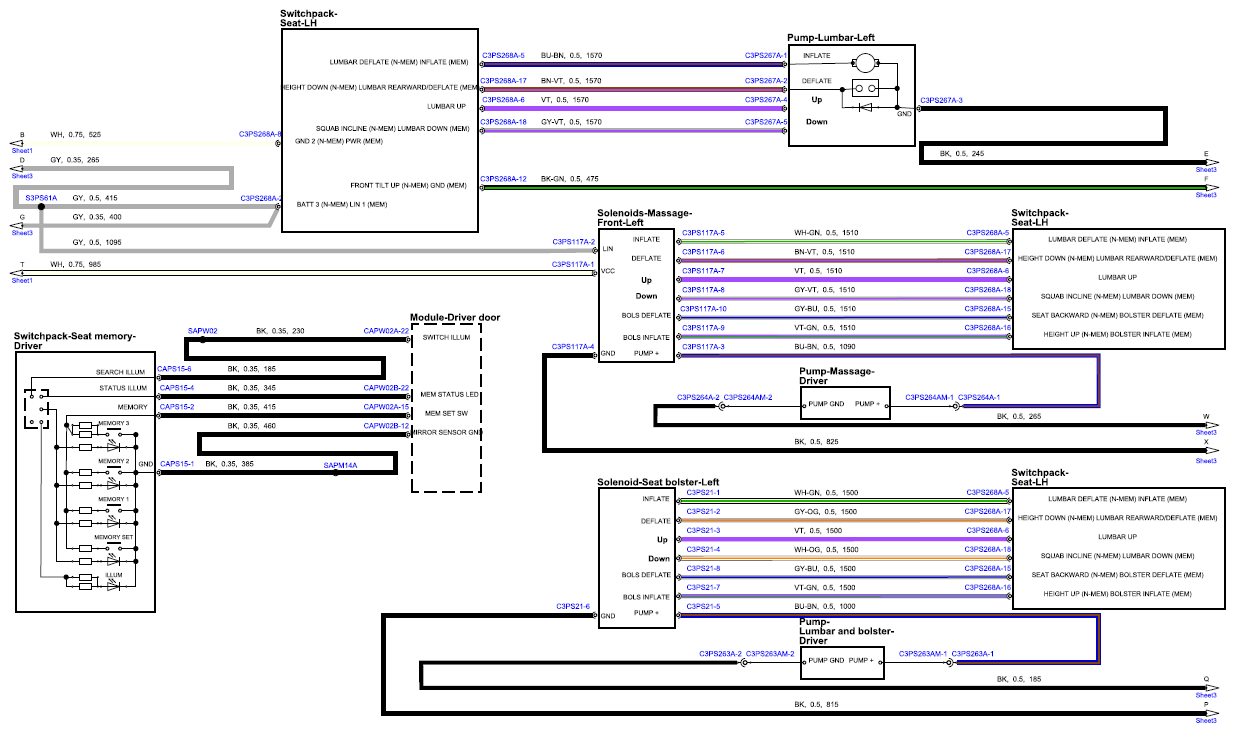

Fig 2: Driver - Memory Circuit Diagram (Sheet 2)
G15597653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

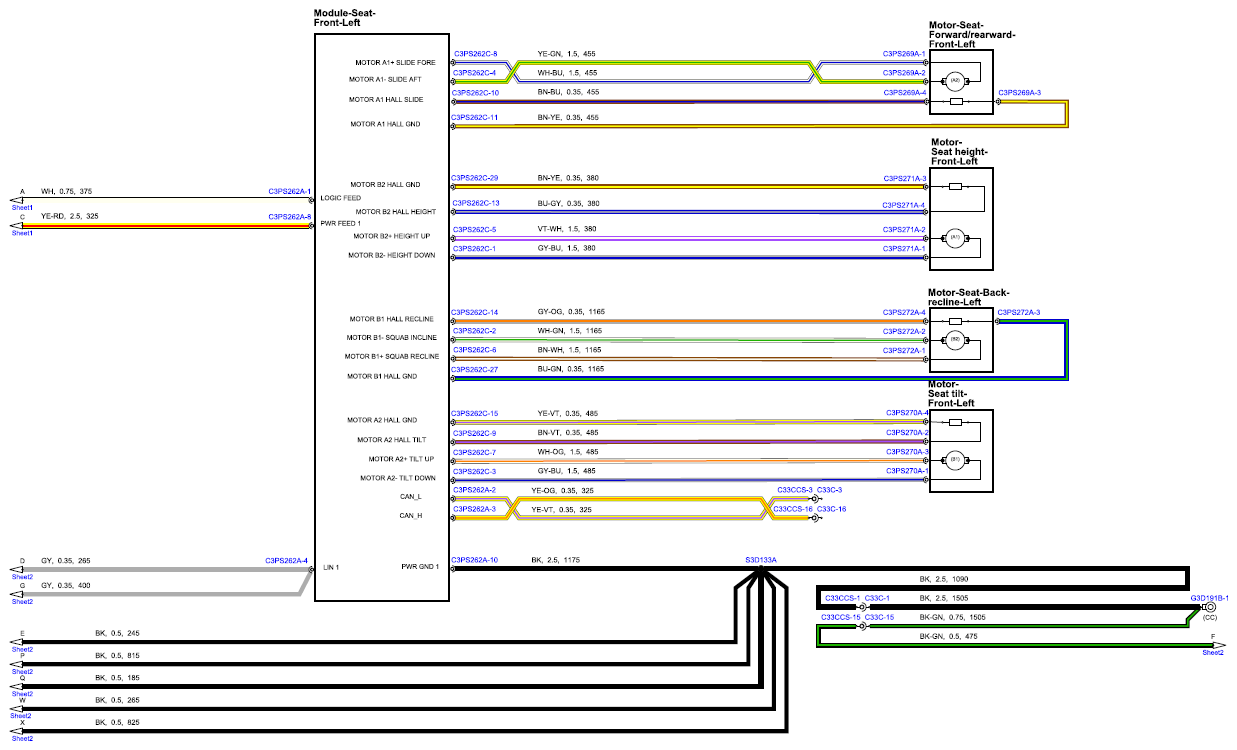

Fig 3: Driver - Memory Circuit Diagram (Sheet 3)
G15597654Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
