501-09 Rear View Mirrors Wiring Diagrams: Electrochromic

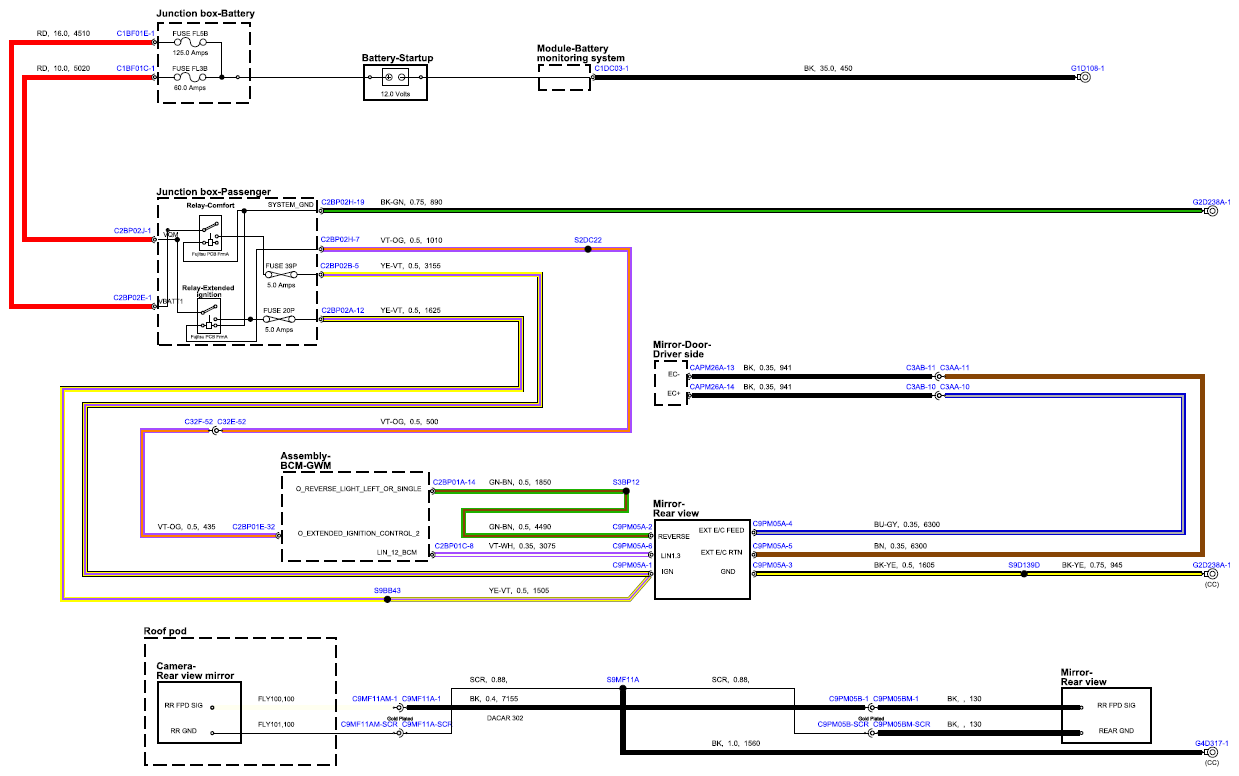

Fig 1: Electrochromic Circuit Diagram

G15597650

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
