OEM Wiring Diagrams -- Range Rover EVOQUE L551
>>
419-01 Anti-Theft System Wiring Diagrams
>>
Passive entry system
Passive entry system

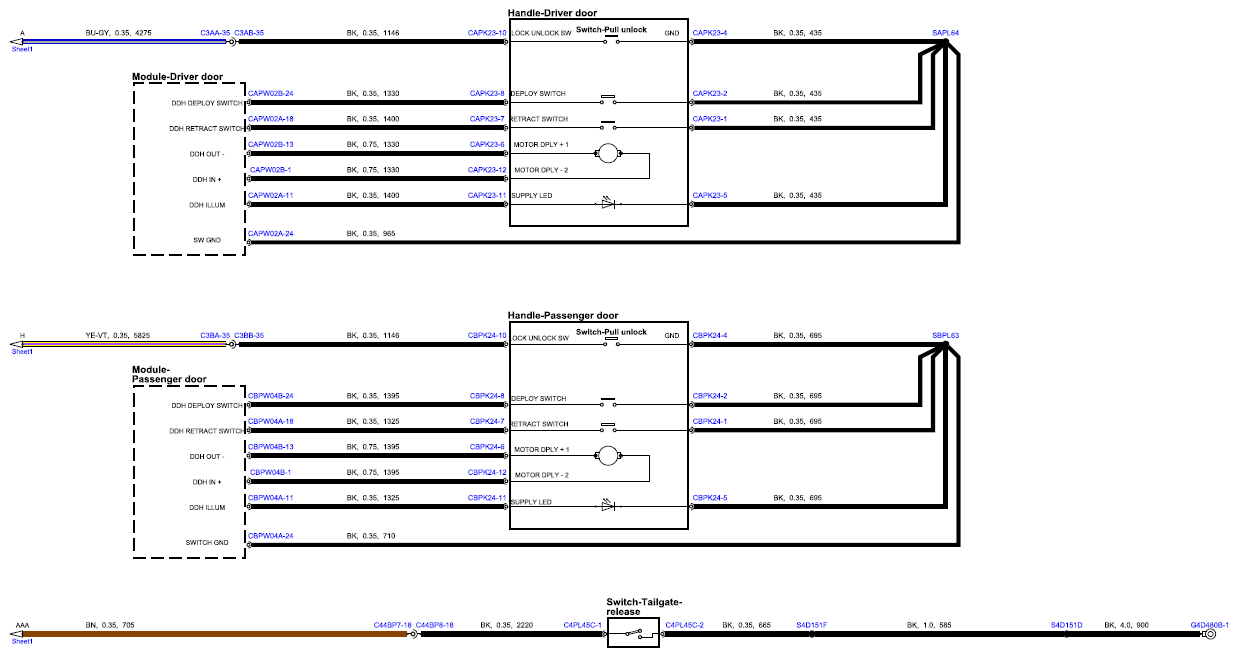

Fig 1: Passive Entry System Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

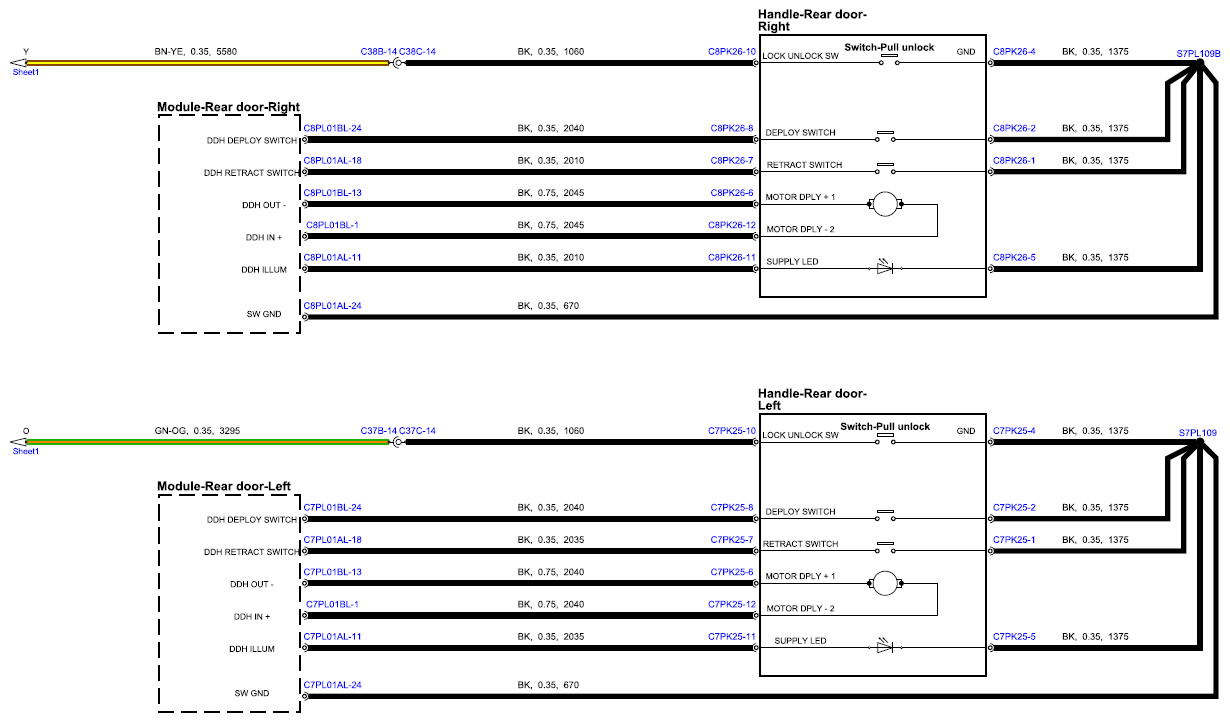

Fig 2: Passive Entry System Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

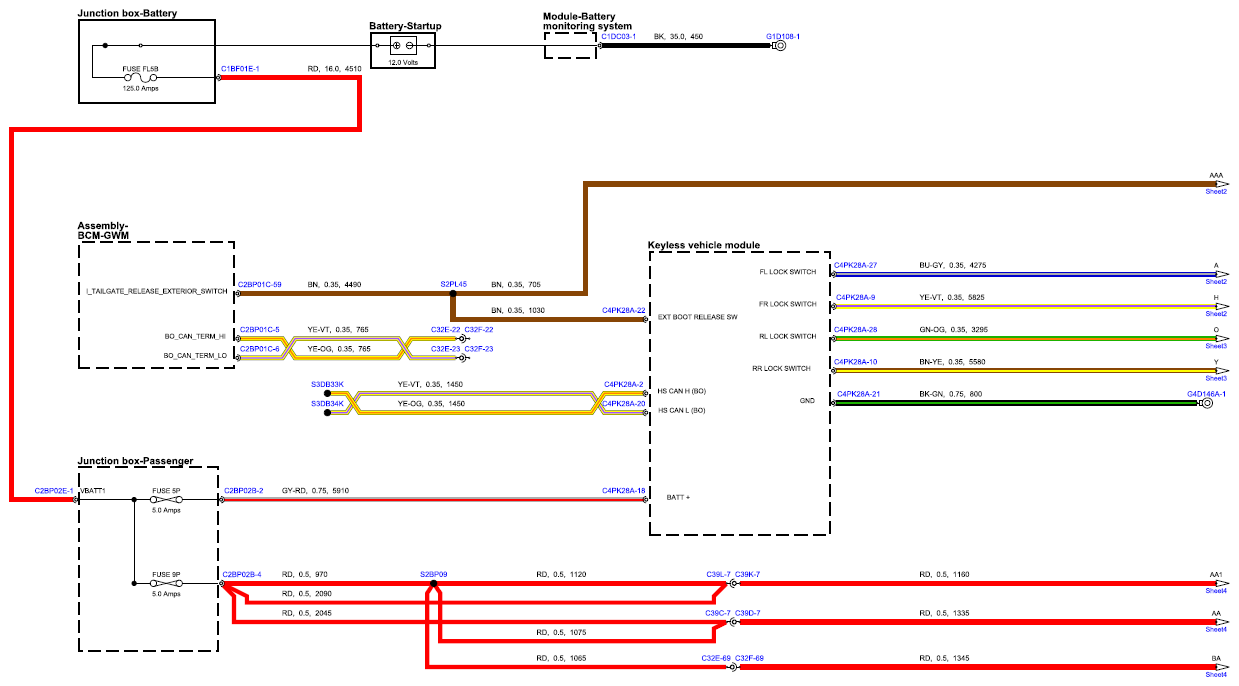

Fig 3: Passive Entry System Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

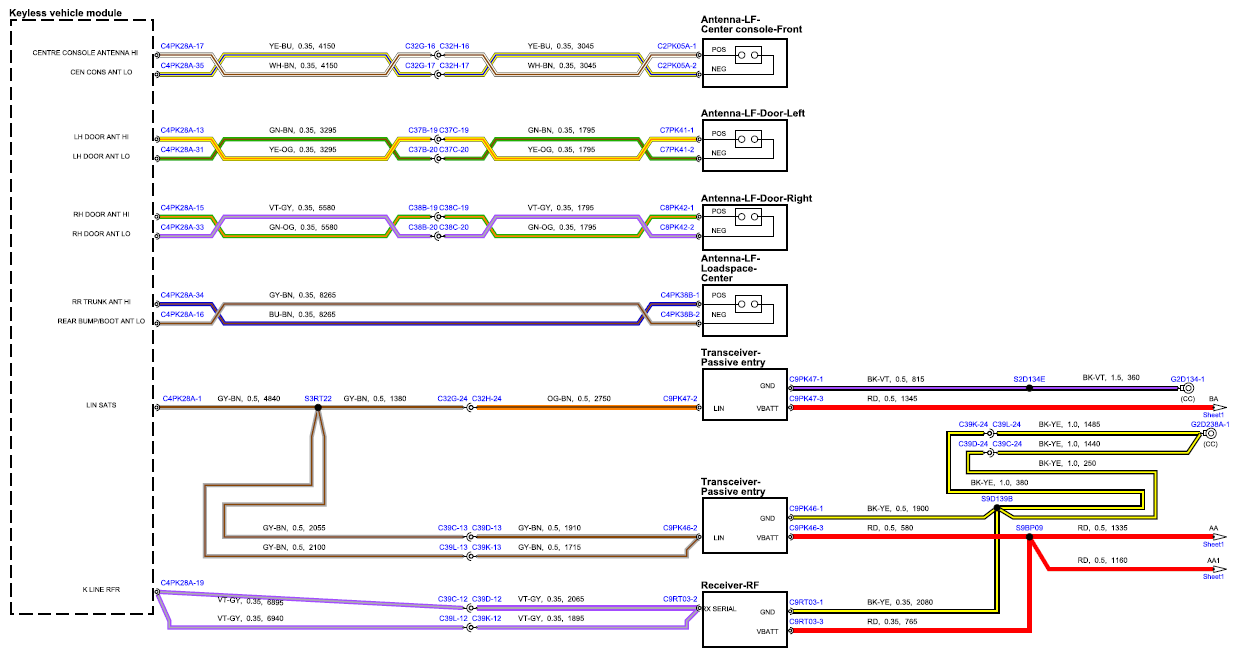

Fig 4: Passive Entry System Circuit Diagram (Sheet 4)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
