CAN bus - High speed - Comfort systems

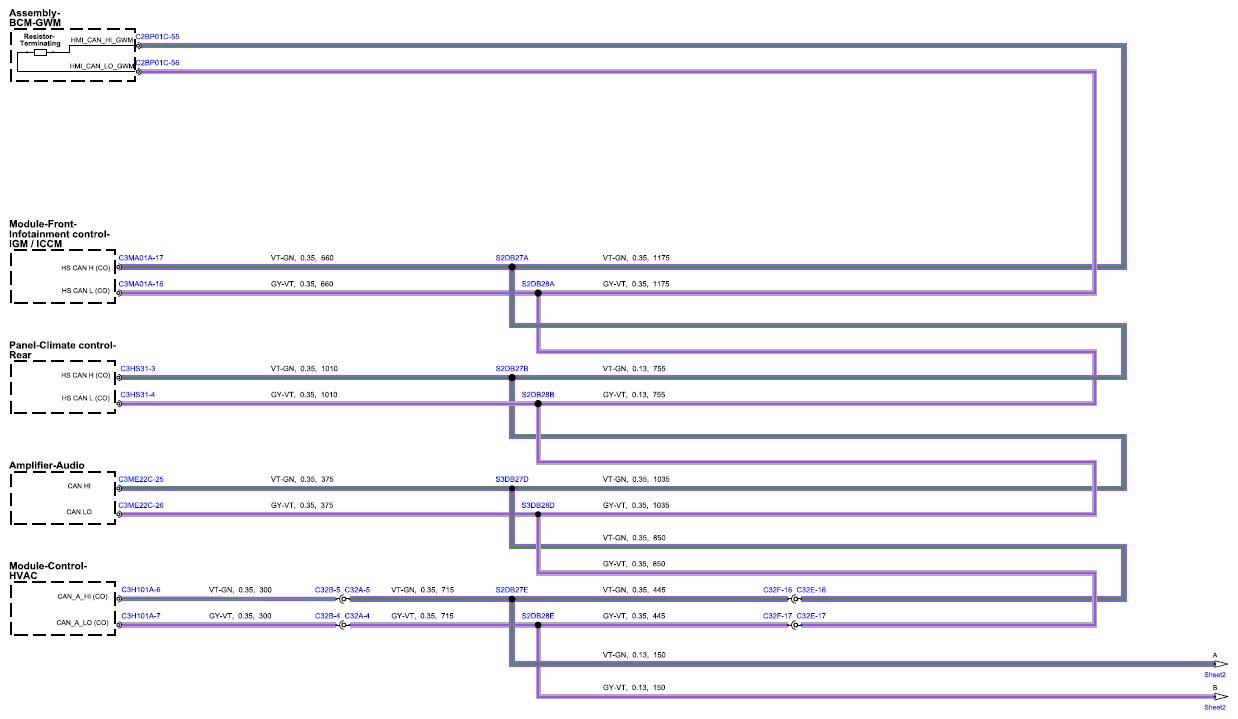

Fig 1: CAN Bus, High Speed And Comfort Systems Circuit Diagram (Sheet 1)
G15597622Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

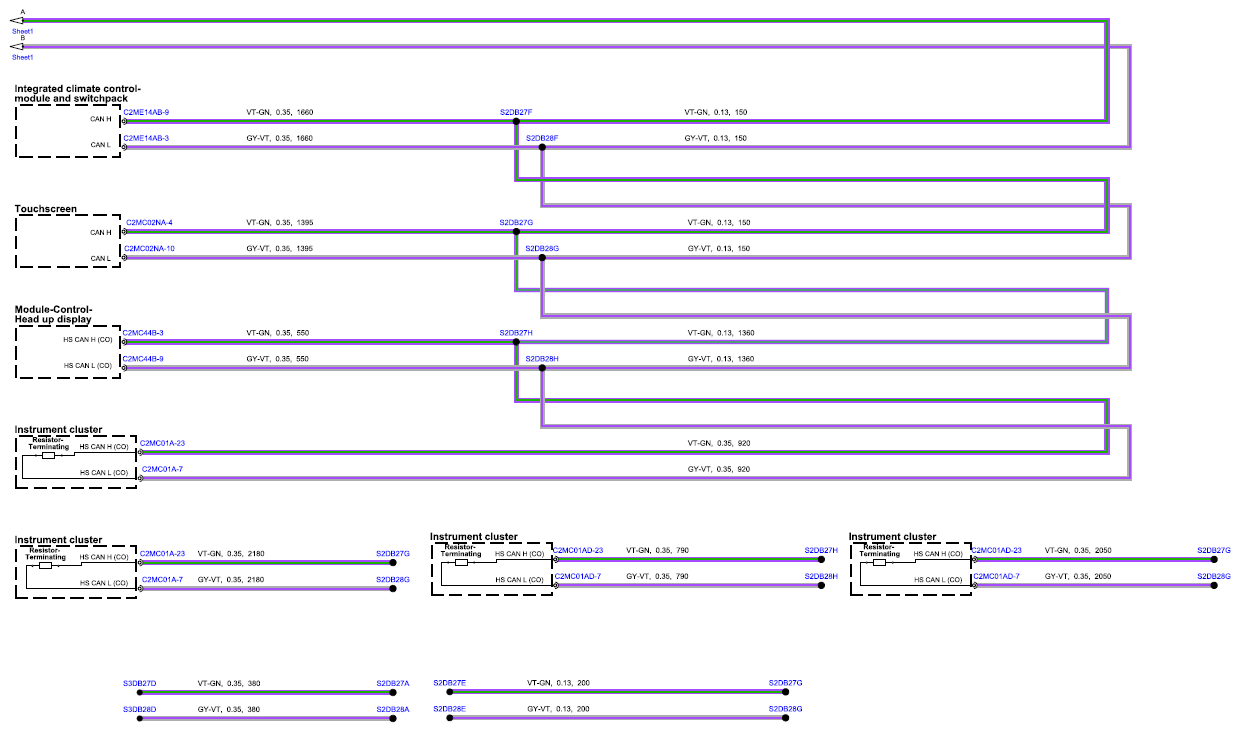

Fig 2: CAN Bus, High Speed And Comfort Systems Circuit Diagram (Sheet 2)
G15597623Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
