414-02C Generator And Regulator (PHEV) Wiring Diagrams: Pi3

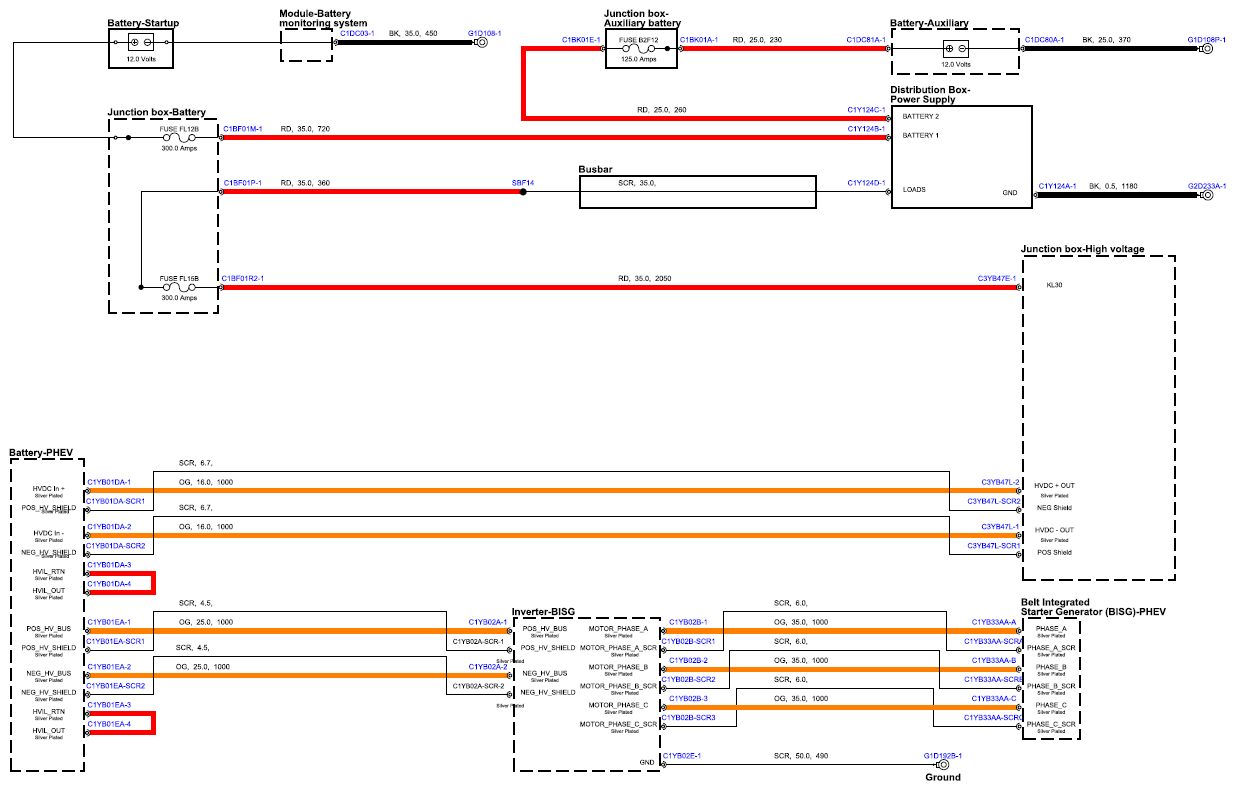

Fig 1: Generator And Regulator (PHEV) Circuit Diagram (PI3)

G15597589

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
