414-02B Generator And Regulator (MHEV) Wiring Diagrams: Pi3

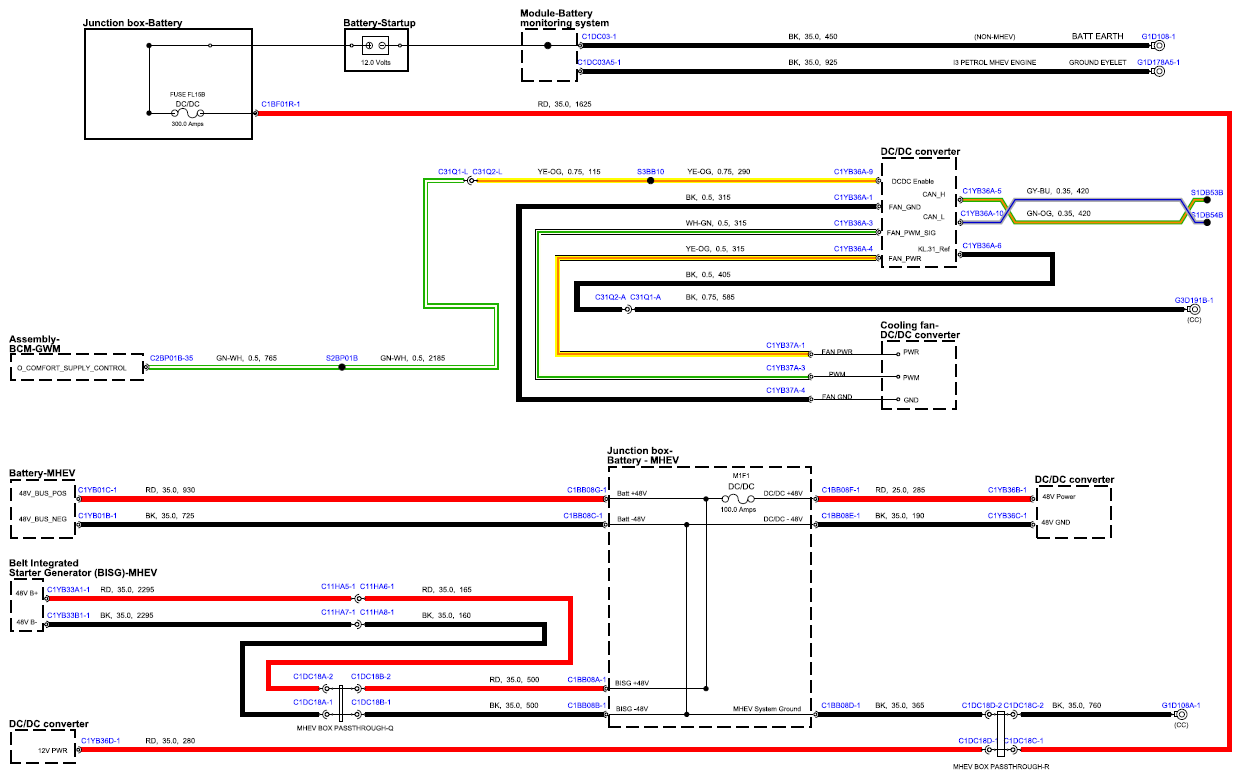

Fig 1: Generator And Regulator (MHEV) Circuit Diagram (PI3)

G15597587

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
